Specification	0761451614

Color	Black
Connector Style	Impact
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	96
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	16
Number of Positions	288
Number of Positions Loaded	All
Number of Rows	18
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076145 Series

...

Part	Material Flammability Rating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions Loaded	Connector Style	Connector Type	Mounting Type	Number of Positions	Color	Contact Finish	Number of Columns	Differential Pairs (Typical)	Number of Rows	Pitch	Contact Finish Thickness	Termination
Molex 0761456106	UL94 V-0	30 V	-55 °C	85 °C	All	Guide Left Impact	Header Male Pins	Through Hole	180	Black	Gold	10	10	18	0.053 in	30 µin	Press-Fit

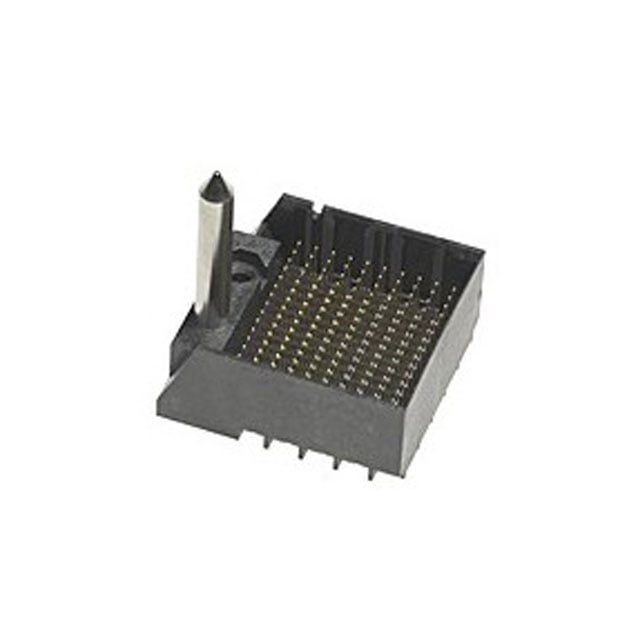

Molex 0761457606	UL94 V-0	30 V	-55 °C	85 °C	All	Guide Left Impact	Header Male Pins	Through Hole	288	Black	Gold	16	96	18	0.053 in	30 µin	Press-Fit

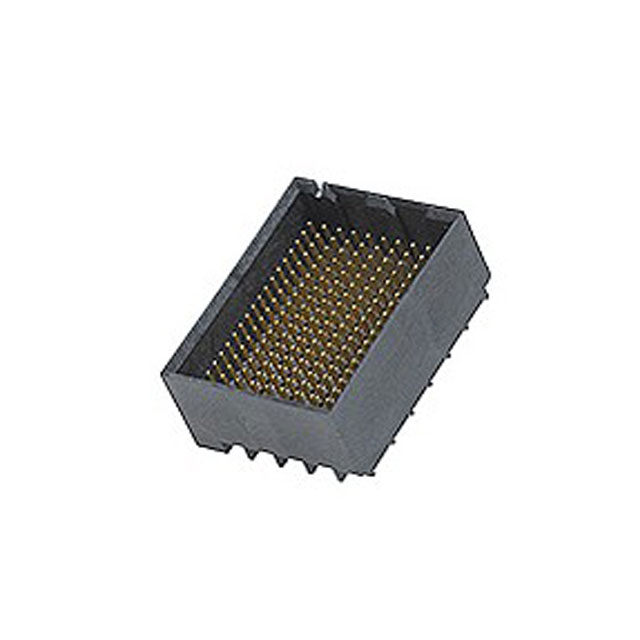

Molex 0761451125	UL94 V-0	30 V	-55 °C	85 °C	All	Impact	Header Male Pins	Through Hole	180	Black	Gold	10	60	18	0.053 in	30 µin	Press-Fit
Molex 0761456604	UL94 V-0	30 V	-55 °C	85 °C	All	Guide Left Impact	Header Male Pins	Through Hole	288	Black	Gold	16	96	18	0.053 in	30 µin	Press-Fit

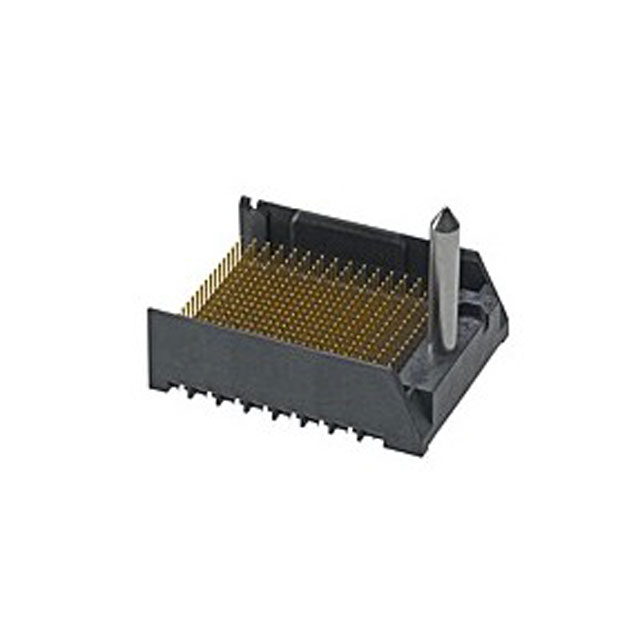

Molex 0761455608	UL94 V-0	30 V	-55 °C	85 °C	All	Guide Right Impact	Header Male Pins	Through Hole	288	Black	Gold	16	96	18	0.053 in	30 µin	Press-Fit
Molex 0761454605	UL94 V-0	30 V	-55 °C	85 °C	All	Guide Right Impact	Header Male Pins	Through Hole	288	Black	Gold	16	96	18	0.053 in	30 µin	Press-Fit

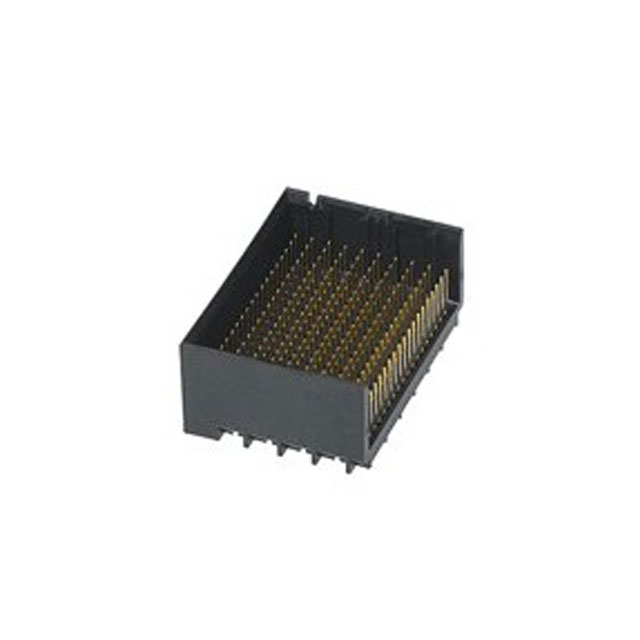

Molex 0761451118	UL94 V-0	30 V	-55 °C	85 °C	All	Impact	Header Male Pins	Through Hole	180	Black	Gold	10	60	18	0.053 in	30 µin	Press-Fit

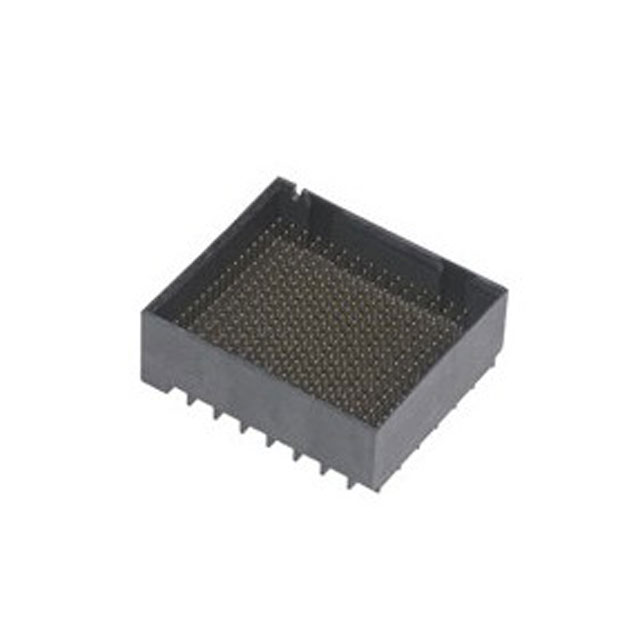

Molex 0761451628	UL94 V-0	30 V	-55 °C	85 °C	All	Impact	Header Male Pins	Through Hole	288	Black	Gold	16	96	18	0.053 in	30 µin	Press-Fit
Molex 0761450116	UL94 V-0	30 V	-55 °C	85 °C	All	Impact	Header Male Pins	Through Hole	180	Black	Gold	10	60	18	0.053 in	30 µin	Press-Fit
Molex 0761458606	UL94 V-0	30 V	-55 °C	85 °C	All	Guide Right Impact	Header Male Pins	Through Hole	288	Black	Gold	16	96	18	0.053 in	30 µin	Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Backplane Roadmap

0761451614 | Datasheet
