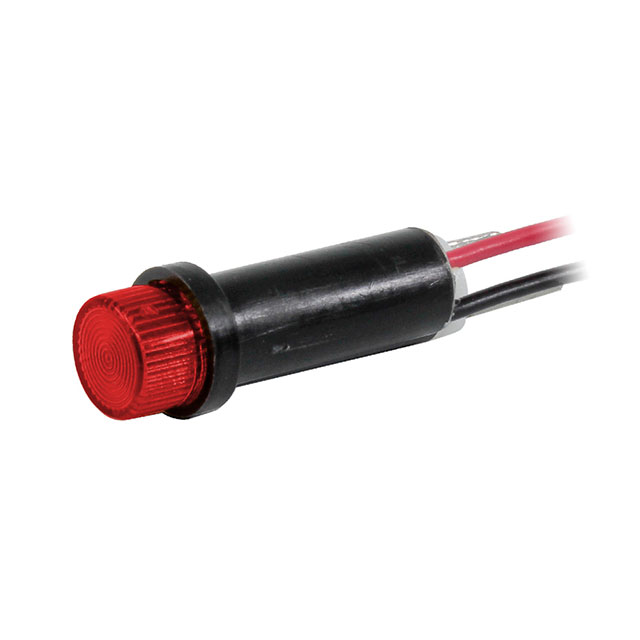

41W-NKR28H-CRO
ObsoleteVisual Communications Company - VCC
PMI .250" LED 28V WIRE CLEAR RED
41W-NKR28H-CRO
ObsoleteVisual Communications Company - VCC
PMI .250" LED 28V WIRE CLEAR RED
Description
General part information
41W-NKR28H-CRO
LED Panel Indicator Red Clear 15° 28V 16.5mA Wire Leads - 6" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 41W-NKR28H-CRO |
|---|---|
| Current | 16.5 mA |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Diameter | 7.11 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 3600 mcd |
| Panel Cutout Dimension | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Length | 6 in |
| Termination Style | Wire Leads |
| Type | LED |
| Viewing Angle | 15 ° |
| Voltage | 28 V |
| Wavelength - Peak | 634 nm |
