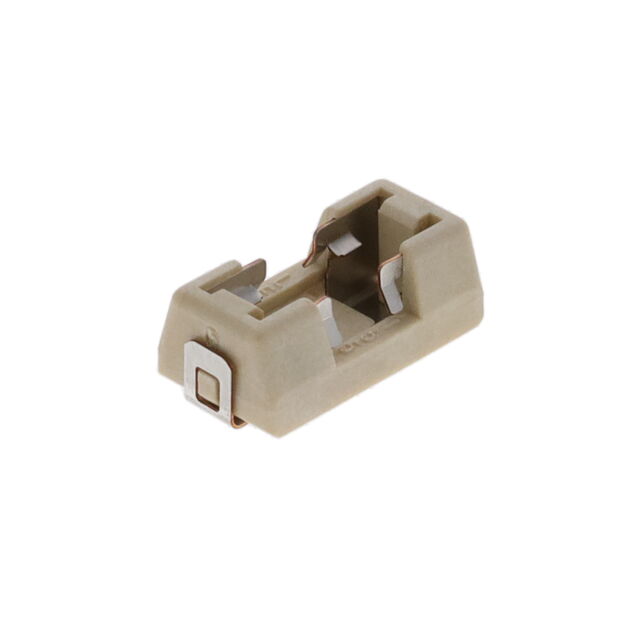

01550900DR

Active

LITTELFUSE

ACS NANO FUSEHLDR TAPE REEL/ P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

01550900DR

Active

LITTELFUSE

ACS NANO FUSEHLDR TAPE REEL/ P

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	01550900DR

Contact Finish	Silver
For Use With/Related Products	Nano 452
Fuse Type	Cartridge
Fuseholder Type	Block
Mounting Type	Surface Mount
Number of Circuits	1
Termination Style	Surface Mount
Voltage	125 V

01550900DR Series

ACS NANO FUSEHLDR TAPE & REEL

Part	Fuse Type	Contact Finish	For Use With/Related Products	Voltage	Termination Style	Number of Circuits	Mounting Type	Fuseholder Type
LITTELFUSE 01550900DR	Cartridge	Silver	Nano 452	125 V	Surface Mount	1	Surface Mount	Block

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.70
		5	$ 2.57
		10	$ 2.44
		50	$ 1.97
		100	$ 1.67
		250	$ 1.63
		500	$ 1.37
	Digi-Reel®	1	$ 2.70
		5	$ 2.57
		10	$ 2.44
		50	$ 1.97
		100	$ 1.67
		250	$ 1.63
		500	$ 1.37
	Tape & Reel (TR)	1500	$ 1.06
		3000	$ 1.06
Newark	Each	1000	$ 1.30
		2500	$ 1.17

Description

General part information

01550900DR Series

The RoHS compliant 155 Series OMNI-BLOK® offers a solution for efficient installation and easy replacement of miniature Nano2® surface mount fuses. Offered bulk but also in a tape and reel package, this block can be installed on a PC board as an efficient single step. Fuse replacement can be accomplished without exposing the PC board to the detrimental effects of solder heat.
