CT2147-150-2

Active

Cal Test Electronics

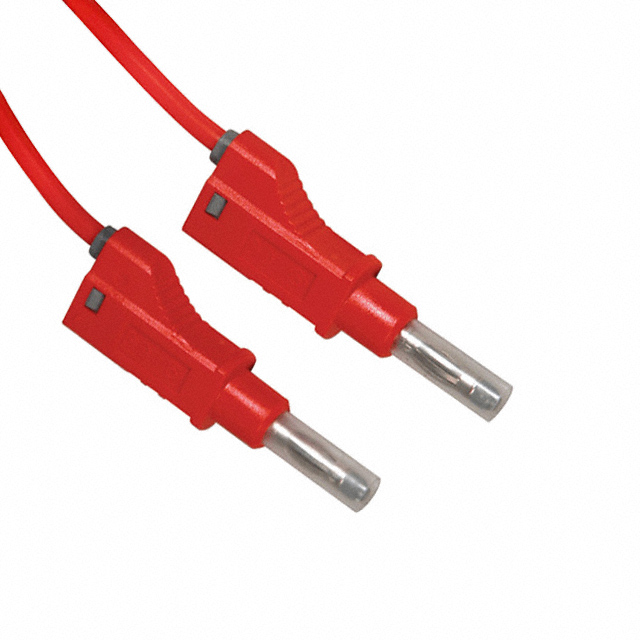

TEST LEAD BANANA TO BANANA 59.1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2147-150-2

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 59.1"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 15.00

Description

General part information

CT2147 Series

59.1" (1500.00mm) Banana Plug, Single, Stackable, Sheathed - Retractable To Banana Plug, Single, Stackable, Sheathed - Retractable Patch Cord 600V

Documents

Technical documentation and resources

Datasheet

Specification	CT2147-150-2	CT2147 Series

1st Connector	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana Plug, Single, Stackable, Sheathed - Retractable
2nd Connector	Retractable, Banana Plug, Single, Stackable, Sheathed	Retractable, Banana Plug, Single, Stackable, Sheathed
Cable Length	59.1 in	9.8 - 78.7 in
Cable Length	1.5 m	1.5 - 250 cm
Cable Length	-	4 in
Cable Length	-	101.6 mm
Configuration	Banana to Banana	Banana to Banana
Contents	Red	Red, 1 Lead, Blue, 1 Lead, Black, Yellow, 1 Lead, 1 Lead, White
Contents [custom]	1	1
Current Rating (Amps)	12 A	12 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Ratings	CAT II	CAT II
Ratings	600 V	600 V
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	600 VDC	600 VDC
Wire Gauge	18 AWG	18 AWG

Part	Material - Insulation	Ratings	Ratings	Current Rating (Amps)	Stacking Method	1st Connector	Configuration	Voltage - Rated	Cable Length	Cable Length	2nd Connector	Type	Contents [custom]	Contents	Wire Gauge
Cal Test Electronics CT2147-100-2	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	100 cm	39.4 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord	1	Red	18 AWG
Cal Test Electronics CT2147-200-2	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	2 m	78.7 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord	1	Red	18 AWG
Cal Test Electronics CT2147-25-6	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	250 mm	9.8 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord		1 Lead, Blue	18 AWG
Cal Test Electronics CT2147-100-0	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	100 cm	39.4 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord		1 Lead, Black	18 AWG
Cal Test Electronics CT2147-50-4	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	50 cm	19.7 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord		1 Lead, Yellow	18 AWG
Cal Test Electronics CT2147-50-2	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	50 cm	19.7 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord	1	Red	18 AWG
Cal Test Electronics CT2147-50-6	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	50 cm	19.7 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord		1 Lead, Blue	18 AWG
Cal Test Electronics CT2147-150-0	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	1.5 m	59.1 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord		1 Lead, Black	18 AWG
Cal Test Electronics CT2147-200-4	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	2 m	78.7 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord		1 Lead, Yellow	18 AWG
Cal Test Electronics CT2147-100-5	Poly-Vinyl Chloride (PVC)	CAT II	600 V	12 A	Front Stacking	Banana Plug, Single, Stackable, Sheathed - Retractable	Banana to Banana	600 VDC	100 cm	39.4 in	Banana Plug, Retractable, Sheathed, Single, Stackable	Patch Cord			18 AWG
