PQ12-100-6-R

Active

Actuonix Motion Devices Inc

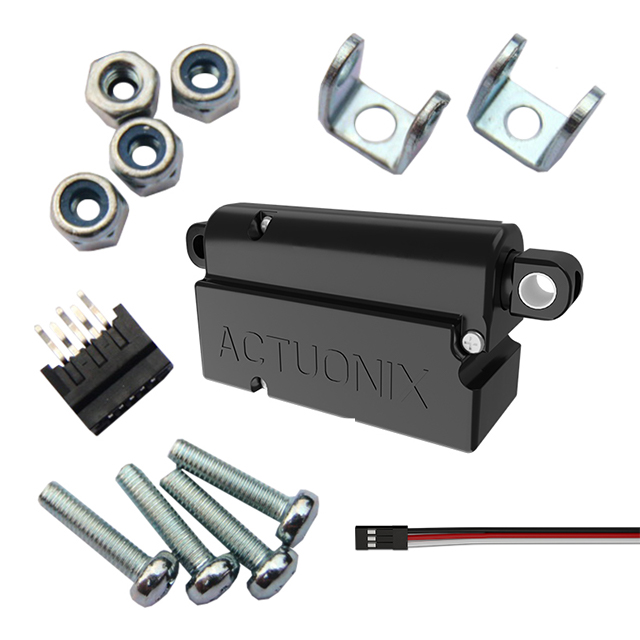

PQ12-R MICRO LINEAR SERVO

Search across all available documentation for this part.

Active

Actuonix Motion Devices Inc

PQ12-R MICRO LINEAR SERVO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PQ12-100-6-R	PQ12-100 Series

Accuracy	0.1 mm	0.1 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	RC Linear Servo	Limit Switches, RC Linear Servo
Feedback Type	-	Potentiometer
Gear Reduction Ratio	100	100
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	11.24 lbf	11.24 lbf
Load Force (Dynamic)	50 N	50 N
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	0.39 in/s	0.39 in/s
Speed	10 mm/s	10 mm/s
Stroke Length	0.787 in	0.787 in
Stroke Length	20 mm	20 mm
Type	Linear Actuator	Linear Actuator
Voltage - Rated	6 VDC	6 - 12 VDC

PQ12-S MICRO LINEAR ACTUATOR

Part	Motor Type	Ingress Protection	Accuracy	Voltage - Rated	Duty Cycle	Features	Construction	Load Force (Dynamic)	Load Force (Dynamic)	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Stroke Length	Stroke Length	Speed	Speed	Gear Reduction Ratio	Feedback Type
Actuonix Motion Devices Inc PQ12-100-12-S	Brushed	IP54 - Dust Protected, Water Resistant	0.1 mm	12 VDC	20 %	Limit Switches	Ball Screw	11.24 lbf	50 N	Linear Actuator	-10 °C	50 °C	0.787 in	20 mm	0.39 in/s	10 mm/s	100
Actuonix Motion Devices Inc PQ12-100-6-P	Brushed	IP54 - Dust Protected, Water Resistant	0.1 mm	6 VDC	20 %		Ball Screw	11.24 lbf	50 N	Linear Actuator	-10 °C	50 °C	0.787 in	20 mm	0.39 in/s	10 mm/s	100	Potentiometer
Actuonix Motion Devices Inc PQ12-100-12-P	Brushed	IP54 - Dust Protected, Water Resistant	0.1 mm	12 VDC	20 %		Ball Screw	11.24 lbf	50 N	Linear Actuator	-10 °C	50 °C	0.787 in	20 mm	0.39 in/s	10 mm/s	100	Potentiometer
Actuonix Motion Devices Inc PQ12-100-6-R	Brushed	IP54 - Dust Protected, Water Resistant	0.1 mm	6 VDC	20 %	RC Linear Servo	Ball Screw	11.24 lbf	50 N	Linear Actuator	-10 °C	50 °C	0.787 in	20 mm	0.39 in/s	10 mm/s	100
Actuonix Motion Devices Inc PQ12-100-6-S	Brushed	IP54 - Dust Protected, Water Resistant	0.1 mm	6 VDC	20 %	Limit Switches	Ball Screw	11.24 lbf	50 N	Linear Actuator	-10 °C	50 °C	0.787 in	20 mm	0.39 in/s	10 mm/s	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00

General part information

PQ12-R MICRO LINEAR SERVO

Technical documentation and resources
