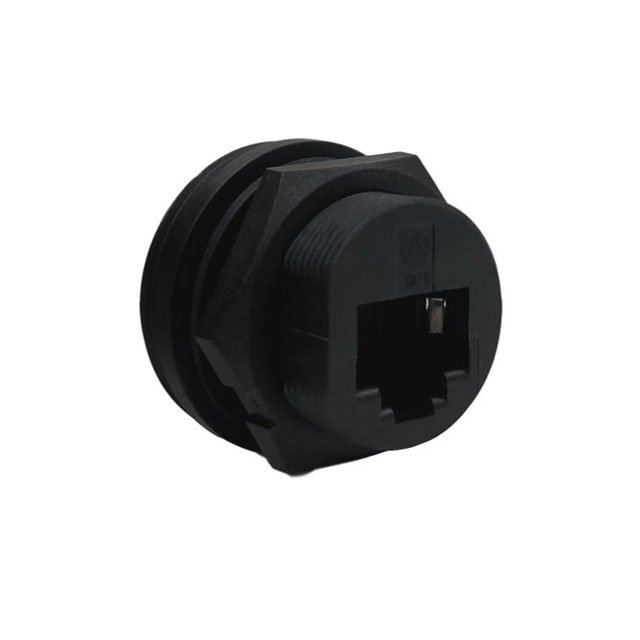

ENDP6PC

Active

Switchcraft Inc.

MODULAR CONNECTORS / ETHERNET CONNECTORS IP67 SEALED RJ45 RCPT CAT6 PC TAIL

Search across all available documentation for this part.

Active

Switchcraft Inc.

MODULAR CONNECTORS / ETHERNET CONNECTORS IP67 SEALED RJ45 RCPT CAT6 PC TAIL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ENDP6PC	END Series

Cable Type	-	Round Cable
Color	-	Clear
Connector Type	Jack	Plug, Jack
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount	Bulkhead, Panel Mount
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Orientation	Straight	Straight
Ratings	Cat6	Cat6
Shielding	Unshielded	Shielded, Unshielded
Tab Direction	User Selectable	User Selectable
Termination	Solder	IDC, Solder

Modular Connectors / Ethernet Connectors IP67 Sealed RJ45 Plug CAT6 Shielded

Part	Ingress Protection	Termination	Connector Type	Contact Material	Color	Contact Finish	Cable Type	Shielding	Ratings	Number of Positions/Contacts	Number of Rows	Tab Direction	Housing Material	LED Color	Orientation	Mounting Type	Number of Ports
Switchcraft Inc. ENDC6S	IP67 - Dust Tight, Waterproof	IDC	Plug	Copper Alloy	Clear	Gold	Round Cable	Shielded	Cat6	8p8c (RJ45, Ethernet)
Switchcraft Inc. ENDC6	IP67 - Dust Tight, Waterproof	IDC	Plug	Copper Alloy	Clear	Gold	Round Cable	Unshielded	Cat6	8p8c (RJ45, Ethernet)
Switchcraft Inc. ENDP6PC	IP67 - Dust Tight, Waterproof	Solder	Jack	Copper Alloy		Gold		Unshielded	Cat6	8p8c (RJ45, Ethernet)	1	User Selectable	Polyamide (PA), Nylon	Does Not Contain LED	Straight	Bulkhead, Panel Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Connectors / Ethernet Connectors IP67 Sealed RJ45 Plug CAT6 Shielded
