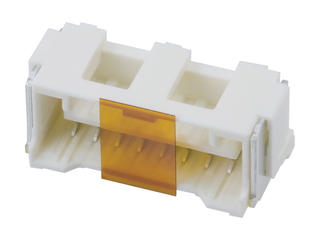

1.50MM PITCH, CLIK-MATE PCB RECEPTACLE, SINGLE ROW, SURFACE MOUNT, VERTICAL, TIN PLATING, POSITIVE LOCK, WITH PICK-AND-PLACE POLYIMIDE TAPE, 8 CIRCUITS, BEIGE

Find alt

Alpha

5025840860

Active

Molex

1.50MM PITCH, CLIK-MATE PCB RECEPTACLE, SINGLE ROW, SURFACE MOUNT, VERTICAL, TIN PLATING, POSITIVE LOCK, WITH PICK-AND-PLACE POLYIMIDE TAPE, 8 CIRCUITS, BEIGE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

502584 Series

1.50mm Pitch, CLIK-Mate PCB Receptacle, Single Row, Surface Mount, Vertical, Tin Plating, Positive Lock, with Pick-and-Place Polyimide Tape, 9 Circuits, Beige

Technical Specifications

Parameters and characteristics for this part

Specification	5025840860

Applications	Lighting, Automotive, General Purpose, Industrial, Medical
Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	39.4 µin
Contact Material	Copper Alloy
Contact Type	Forked
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Solder Retention, Pick and Place
Insulation Color	Beige
Insulation Height	0.287 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.059 in
Style	Cable/Wire, Board
Termination	Solder

502584 Series

1.50mm Pitch, CLIK-Mate PCB Receptacle, Single Row, Surface Mount, Vertical, Tin Plating, Positive Lock, with Pick-and-Place Polyimide Tape, 9 Circuits, Beige

...

Part	Material Flammability Rating	Insulation Height	Contact Finish Thickness - Mating	Mounting Type	Current Rating	Current Rating	Termination	Number of Positions	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Pitch - Mating	Contact Finish - Post	Number of Rows	Insulation Color	Connector Type	Features	Number of Positions Loaded	Style	Contact Type	Fastening Type	Contact Finish Thickness - Post	Contact Material	Applications	Insulation Material
Molex 5025841566	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	15	Tin	-40 °C	105 °C	100 VAC	AC DC	0.059 in	Tin	1	Green	Receptacle	Pick and Place Solder Retention	All	Board Cable/Wire	Forked	Latch Holder	39.4 µin	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Nylon Polyamide (PA)
Molex 5025840660	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	6	Tin	-40 °C	105 °C			0.059 in	Tin	1	Beige	Receptacle	Pick and Place Solder Retention	All	Board Cable/Wire	Forked	Latch Holder	39.4 µin	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Nylon Polyamide (PA)
Molex 5025840974	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	9	Tin	-40 °C	105 °C			0.059 in	Tin	1	Blue	Receptacle	Solder Retention	All	Board Cable/Wire	Forked	Latch Holder	39.4 µin	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Nylon Polyamide (PA)
Molex 5025841360	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	13	Tin	-40 °C	105 °C			0.059 in	Tin	1	Beige	Receptacle	Pick and Place Solder Retention	All	Board Cable/Wire	Forked	Latch Holder
Molex 5025840260	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	2	Tin	-40 °C	105 °C			0.059 in	Tin	1	Beige	Receptacle	Pick and Place Solder Retention	All	Board Cable/Wire	Forked	Latch Holder	39.4 µin	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Nylon Polyamide (PA)
Molex 5025840266
Molex 5025840872
Molex 5025840971	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	9	Tin	-40 °C	105 °C			0.059 in	Tin	1	Black	Receptacle	Solder Retention	All	Board Cable/Wire	Forked	Latch Holder	39.4 µin	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Nylon Polyamide (PA)
Molex 5025841070	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	10	Tin	-40 °C	105 °C			0.059 in	Tin	1	Beige	Receptacle	Solder Retention	All	Board Cable/Wire	Forked	Latch Holder	39.4 µin	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Nylon Polyamide (PA)
Molex 5025840464	UL94 V-0	0.287 in	39.4 µin	Surface Mount	0 A	Varies by Wire Gauge	Solder	4	Tin	-40 °C	105 °C			0.059 in	Tin	1	Blue	Receptacle	Pick and Place Solder Retention	All	Board Cable/Wire	Forked	Latch Holder
