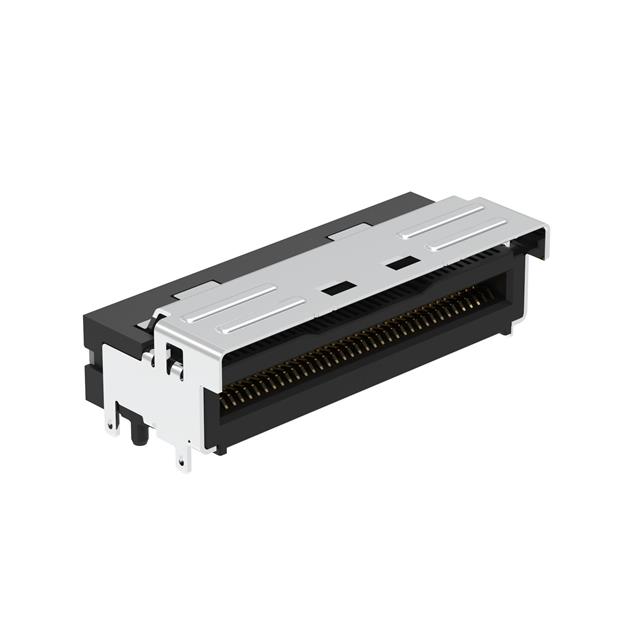

G97R22352HR
ActiveAmphenol ICC (Commercial Products)
MCIO, R/A, 85OHM, 74 PIN, 30U",
G97R22352HR
ActiveAmphenol ICC (Commercial Products)
MCIO, R/A, 85OHM, 74 PIN, 30U",
Description
General part information
G97R22352HR
74 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
Technical Specifications
Parameters and characteristics for this part
| Specification | G97R22352HR |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 74, 37 pos |
| Number of Rows | 2 |
| Pitch | 0.024 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 rows |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
