PA4306.223NLT
ActivePulse Electronics
INDUCTOR POWER UNSHIELDED DRUM CORE 22UH 20% 100KHZ 1.5A 0.286OHM DCR T/R
PA4306.223NLT
ActivePulse Electronics
INDUCTOR POWER UNSHIELDED DRUM CORE 22UH 20% 100KHZ 1.5A 0.286OHM DCR T/R
Description
General part information

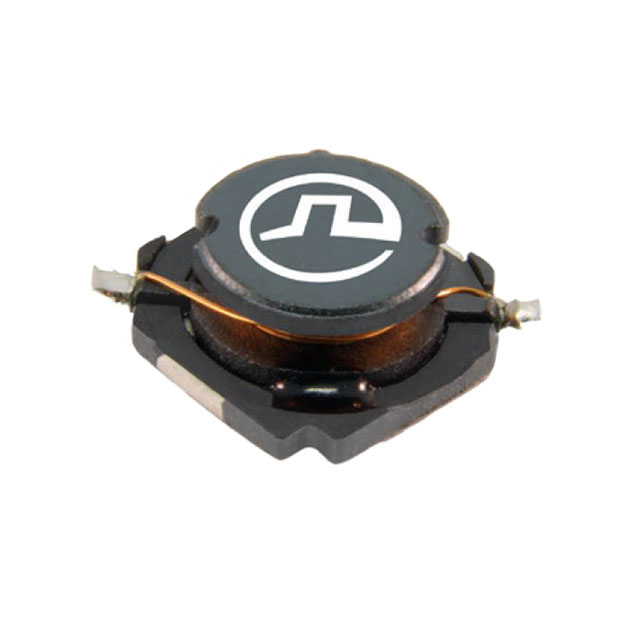

PA4306.223NLT
22 µH Unshielded Wirewound Inductor 1.5 A 286mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4306.223NLT |
|---|---|
| Current Rating | 1.5 A |
| DC Resistance (DCR) (Max) | 286 mOhm |
| Height - Seated (Max) | 0.122 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 20 % |
| Type | Wirewound |
