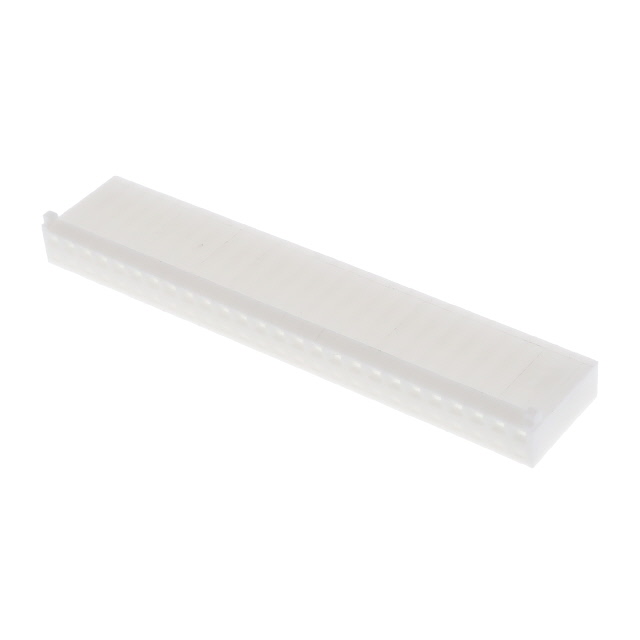

2-1375820-6
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 26POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1375820-6
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 26POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1375820-6 | 1375820 Series |
|---|---|---|
| Color | White | White |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 26 | 4 - 28 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
1375820 Series
CONN RCPT HSG 25POS 2.54MM
| Part | Connector Type | Mounting Type | Contact Termination | Color | Pitch [x] | Pitch [x] | Insulation Material | Note | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1375820-5 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | |
TE Connectivity AMP Connectors 2-1375820-7 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 27 |
TE Connectivity AMP Connectors 2-1375820-1 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 21 |
TE Connectivity AMP Connectors 1-1375820-2 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 12 |
TE Connectivity AMP Connectors 1375820-4 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 4 |
TE Connectivity AMP Connectors 2-1375820-0 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 20 |
TE Connectivity AMP Connectors 2-1375820-2 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 22 positions |
TE Connectivity AMP Connectors 2-1375820-6 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 26 |
TE Connectivity AMP Connectors 2-1375820-8 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 28 |
TE Connectivity AMP Connectors 2-1375820-4 | Receptacle | Free Hanging (In-Line) | Crimp | White | 2.54 mm | 0.1 in | Glass Filled, Nylon, Polyamide (PA) | Contacts Not Included | Female Socket | 105 ░C | -55 °C | Locking Ramp | 1 | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.02 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.93 | |||
| 250 | $ 0.87 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.71 | |||
Description
General part information
1375820 Series
26 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
