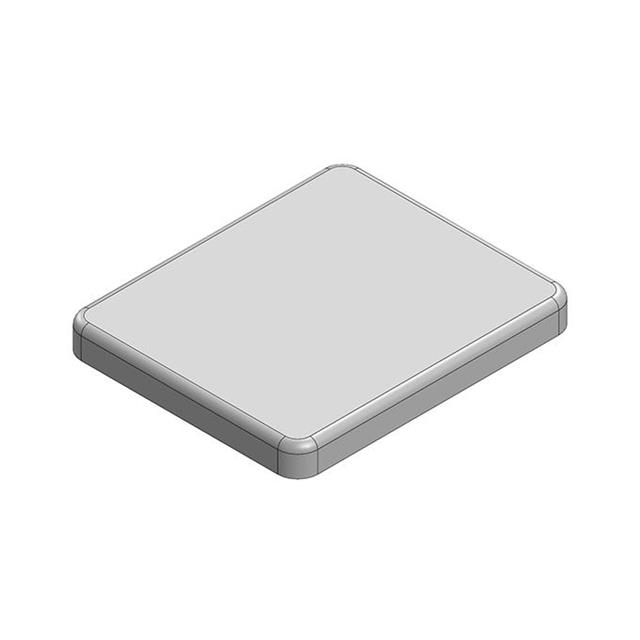

MS183-20S
ActiveMasach Tech Ltd.
RF SHIELD 0.606"X0.720" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS183-20S
ActiveMasach Tech Ltd.
RF SHIELD 0.606"X0.720" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS183-20S |
|---|---|
| Height - Overall [z] | 0.075 in |
| Height - Overall [z] | 1.9 mm |
| Length - Overall [x] | 0.72 in |
| Length - Overall [x] | 18.3 mm |
| Mounting Type | Solder |
| Type | Shield, 1-Piece |
| Ventilation | Non-Vented |
| Width - Overall [y] | 15.4 mm |
| Width - Overall [y] | 0.606 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.82 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.70 | |||
| 110 | $ 0.57 | |||
| 330 | $ 0.53 | |||
| 440 | $ 0.47 | |||
| 990 | $ 0.44 | |||
Description
General part information
MS183-20 Series
RF Shield Shield, 1-Piece 0.606" (15.40mm) X 0.720" (18.30mm) Non-Vented Solder
Documents
Technical documentation and resources
