01-122.025
ActiveEAO

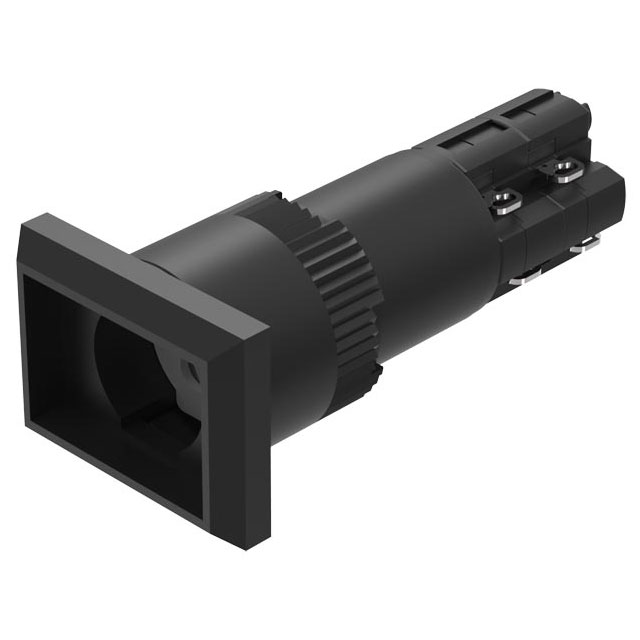

SWITCH PB 4PST-2NO/2NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
01-122.025
ActiveEAO
SWITCH PB 4PST-2NO/2NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 01-122.025 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | 4PST-2NO/2NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.84 | |
| 10 | $ 54.52 | |||
| 100 | $ 45.54 | |||
01-122 Series
SWITCH PB 4PST-2NO/2NC 5A 250V
| Part | Circuit | Mounting Type | Switch Function | Actuator Type | Type | Termination Style | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Ingress Protection | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 01-122.025 | 4PST-2NO/2NC | Panel Mount, Front | Off-Mom, On-Mom | Rectangular, Button (Not Included) | Standard | Solder Lug | 2000000 Cycles | 55 °C | -25 °C | 250 V | IP40 | 16 mm | 5 A | No Marking |
Description
General part information
01-122 Series
Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
