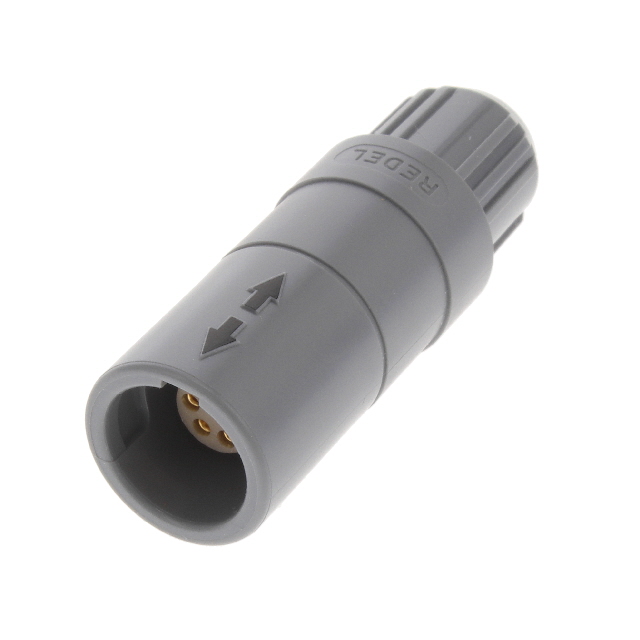

PRG.M0.6GL.LC39G

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRG.M0.6GL.LC39G

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.90
		10	$ 26.18
		25	$ 25.05
		50	$ 24.24
		100	$ 23.43
		250	$ 22.14

Description

General part information

PRG.M0 Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRG.M0.6GL.LC39G	PRG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.209 - 0.256 in
Cable Opening	-	5.3 - 6.5 mm
Cable Opening [Max] [diameter]	0.154 in	0.154 in
Cable Opening [Max] [diameter]	3.9 mm	3.9 mm
Cable Opening [Min] [diameter]	2.7 mm	2.7 mm
Cable Opening [Min] [diameter]	0.106 in	0.106 in
Color	Gray	Gray, Blue, Black, Red, Green, Yellow
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	6 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	2 - 9
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M06	M04, M02, M05, M06, M08, M09
Shielding	Unshielded	Unshielded
Termination	-	Crimp

PRG.M0 Series

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Insert Material	Shielding	Color	Current Rating (Amps)	Contact Finish - Mating	Fastening Type	Shell Material	Ingress Protection	Primary Material	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Applications	Backshell Material, Plating	Orientation	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PRG.M0.7GL.LC52GZ	Polyetheretherketone (PEEK)	Unshielded	Gray	5 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	7	0.157 in	0.205 in	4 mm	5.2 mm	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G
LEMO PRG.M0.4GL.LC65A	Polyetheretherketone (PEEK)	Unshielded	Blue, Gray	8 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	4					Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G	0.209 in, 0.256 in	5.3 mm, 6.5 mm	M04
LEMO PRG.M0.2GL.LC52A	Polyetheretherketone (PEEK)	Unshielded	Blue, Gray	10 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	2	0.157 in	0.205 in	4 mm	5.2 mm	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G			M02
LEMO PRG.M0.5GL.LC39G	Polyetheretherketone (PEEK)	Unshielded	Gray	7 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell						Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G			M05	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M0.7NL.LC52N	Polyetheretherketone (PEEK)	Unshielded	Black	5 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	7	0.157 in	0.205 in	4 mm	5.2 mm	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G
LEMO PRG.M0.4GL.LC52G	Polyetheretherketone (PEEK)	Unshielded	Gray	8 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	4	0.157 in	0.205 in	4 mm	5.2 mm	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G			M04
LEMO PRG.M0.4GL.LC39R	Polyetheretherketone (PEEK)	Unshielded	Gray, Red	8 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	4					Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G			M04	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M0.6GL.LC65A	Polyetheretherketone (PEEK)	Unshielded	Blue, Gray	6 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	6					Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G	0.209 in, 0.256 in	5.3 mm, 6.5 mm	M06
LEMO PRG.M0.4GL.LC39G	Polyetheretherketone (PEEK)	Unshielded	Gray	8 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	4					Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G			M04	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M0.4GL.LC52A	Polyetheretherketone (PEEK)	Unshielded	Blue, Gray	8 A	Gold	Detent Lock, Push-Pull	Polysulfone (PSU)	IP50	Plastic	Free Hanging (In-Line)	Receptacle, Female Sockets	150 °C	-50 °C	Backshell	4	0.157 in	0.205 in	4 mm	5.2 mm	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	G			M04
