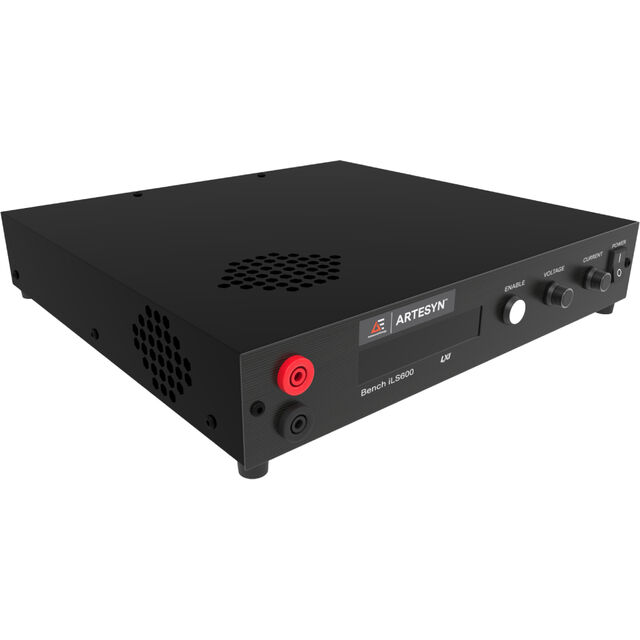

ILS600-3
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 30V 990W
ILS600-3
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 30V 990W
Description
General part information
ILS600-3
Enclosed AC DC Converters 1 Output 30V 100 ~ 240 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ILS600-3 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 33 A |
| Features | Remote Sense, Adjustable Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Power (Watts) | 990 W |
| Size / Dimension Height | 1.73 in |
| Size / Dimension Length | 10.3 in |
| Size / Dimension Width | 8.82 in |
| Standard Number | 62368-1, 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output 1 | 30 V |
