2814841
ObsoletePhoenix Contact

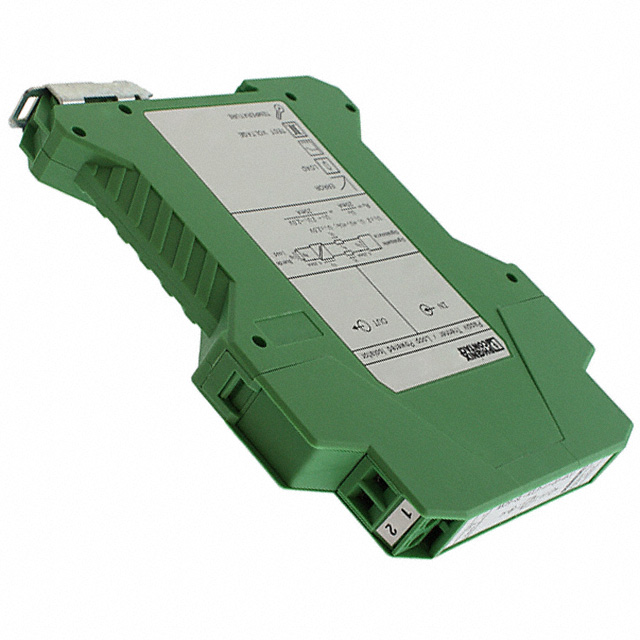

LOOP POWERED ISOLATOR 4-20MA
2814841
ObsoletePhoenix Contact
LOOP POWERED ISOLATOR 4-20MA
Description
General part information
2814841
LOOP POWERED ISOLATOR 4-20MA
Technical Specifications
Parameters and characteristics for this part
| Specification | 2814841 |
|---|---|
| Input Current Range (Maximum) | 20 mA |
| Input Current Range (Minimum) | 0 mA |
| Input Type | Current |
| Isolation | 4000 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 0 mA |
| Output Type | Current |
| Type | Passive Isolator |
| Voltage - Supply | Loop Powered |
| Voltage - Supply Type | Loop Powered |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
