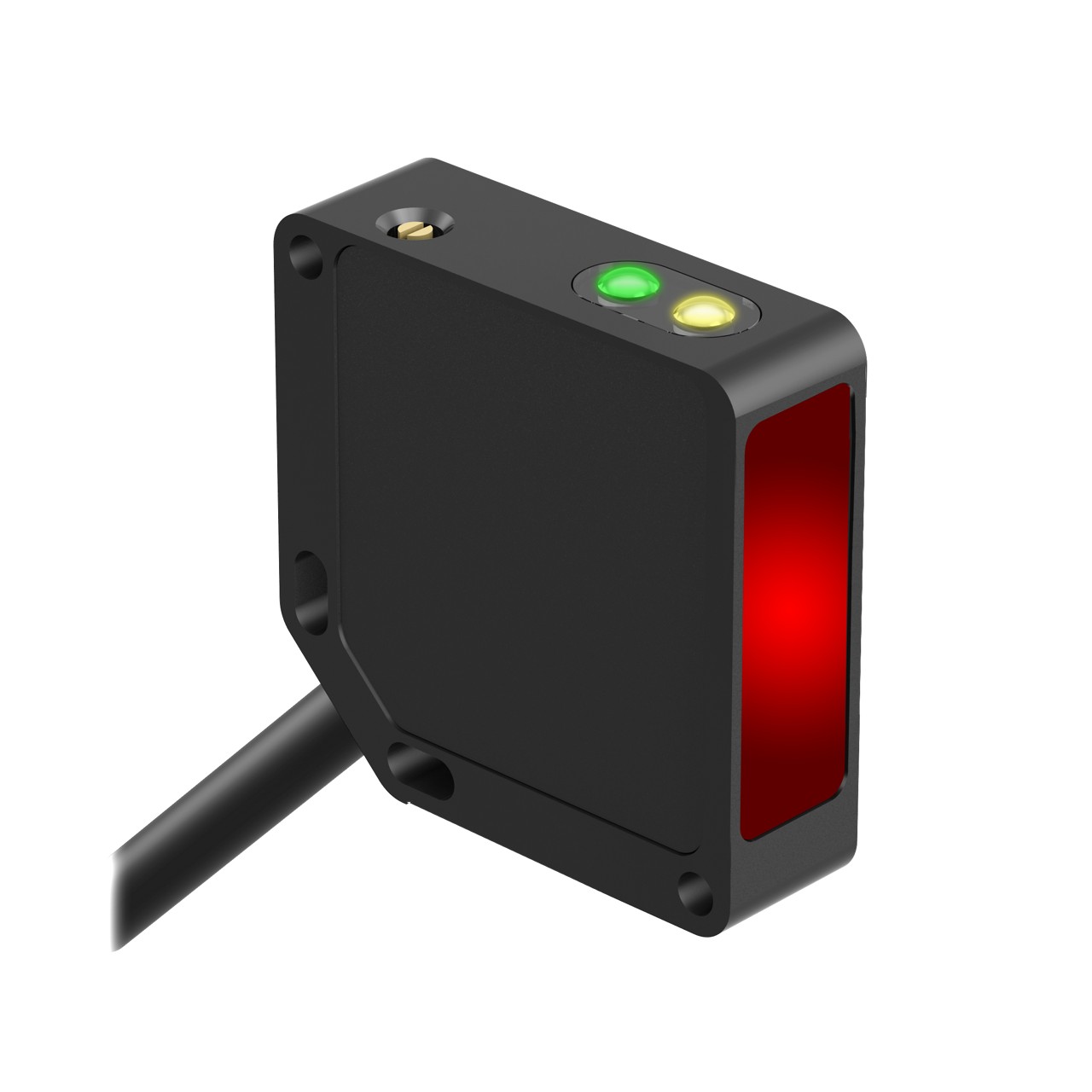

Specification	QM426E

Cable Length	78.74 in
Connection Method	Cable
Ingress Protection	IP67, IEC, NEMA 6P
Light Source	Infrared
Light Source Wavelength (Infrared)	880 nm
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Sensing Distance	32.81 '
Sensing Method	Through-Beam
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC
