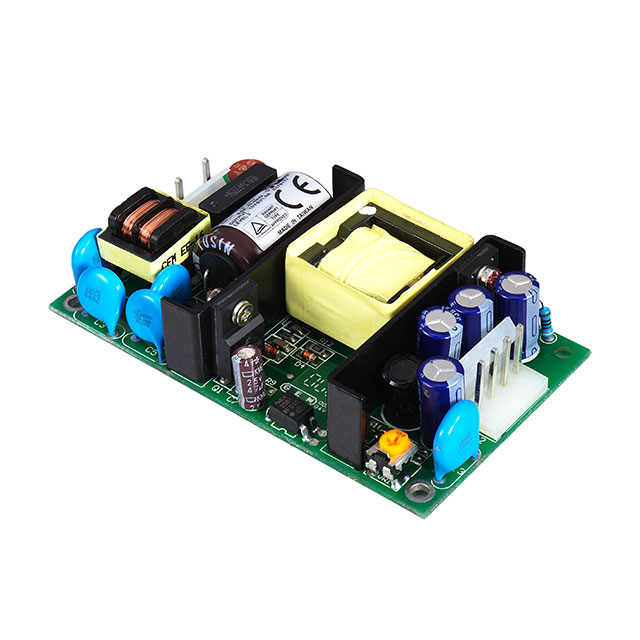

CFM2001S

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 5V 22W

Search across all available documentation for this part.

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 5V 22W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 5V 22W

Part	Features	Approval Agency	Line Regulation	Power (Watts)	Standard Number	Package / Case	Load Regulation	Type	Current - Output (Max) [Max]	Efficiency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Number of Outputs	Current - Output 1	Voltage - Isolation
Cincon Electronics Co. LTD CFM2001S-P	Universal Input	CE, cURus, TUV	0.5 %	22 W	60950-1	Module	1 %	Open Frame	4.4 A	72 %	ITE (Commercial)	3.5 in	1 "	88.9 mm	25.4 mm	2 in	50.8 mm	Through Hole	70 °C	0 °C	5 V	1
Cincon Electronics Co. LTD CFM2001S	Universal Input	CE, cURus, TUV		22 W				Open Frame		72 %	ITE (Commercial)	3.5 in	0.91 in	88.9 mm	23 mm	2 in	50.8 mm	Chassis Mount	70 °C	0 °C	5 V	1	4.4 A	4.242 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.00

General part information

Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
