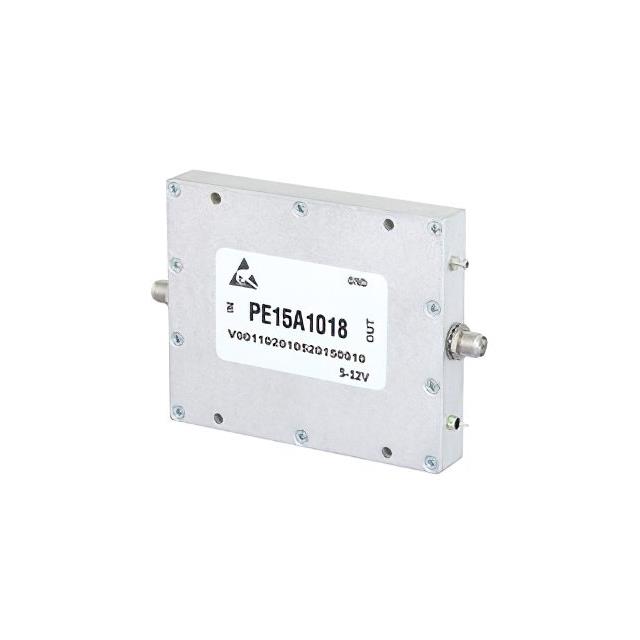

PE15A1018
ActivePasternack
34 DBM IP3, 2.6 DB NF, 20 DBM P1
PE15A1018
ActivePasternack
34 DBM IP3, 2.6 DB NF, 20 DBM P1
Description
General part information
PE15A1018
RF Amplifier IC Radar 500MHz ~ 3GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A1018 |
|---|---|
| Current - Supply | 190 mA |
| Frequency (Max) | 3 GHz |
| Frequency (Min) | 500 MHz |
| Gain | 29 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2.6 dB |
| P1dB | 20 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 12 V |
| Voltage - Supply (Minimum) | 5 V |
