M031GTD2AE

Active

Nuvoton Technology Corporation

M0-32K AP+8KRAM+4XDAC+MANCHESTER

Deep-Dive with AI

Search across all available documentation for this part.

M031GTD2AE

Active

Nuvoton Technology Corporation

M0-32K AP+8KRAM+4XDAC+MANCHESTER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	490	$ 1.75

Description

General part information

M031 Series

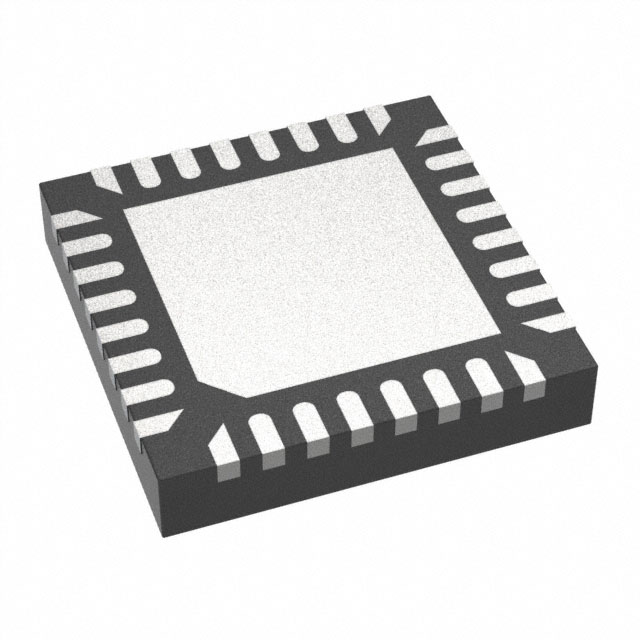

ARM® Cortex®-M0 NuMicro™ M031G Microcontroller IC 32-Bit 72MHz 64KB (64K x 8) FLASH 33-QFN (4x4)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M031GTD2AE	M031 Series

Connectivity	I2C, SPI, UART/USART, SMBus	I2S, EBI/EMI, I2C, UART/USART, SPI, SCI, IrDA, FIFO, SMBus, USB
Core Processor	ARM® Cortex®-M0	ARM® Cortex®-M0
Core Size	32-Bit	32-Bit
Data Converters	-	SAR, A/D 10x12b SAR, A/D 12x12b SAR
Data Converters	-	12 b
Data Converters	-	16
Data Converters [custom]	16x12b SAR	16x12b SAR
Data Converters [custom]	4x12b	4x12b
Mounting Type	Surface Mount	Surface Mount
Number of I/O	28	19 - 55
Operating Temperature [Max]	105 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal, External
Package / Case	-	64-LQFP, 48-VFQFN Exposed Pad, 24-VFQFN, 48-LQFP
Peripherals	WDT, POR, I2S, Brown-out Detect/Reset, PWM	PWM, LVD, Brown-out Detect/Reset, WDT, POR, I2S, DMA, LVR
Program Memory Size	64 KB	16 - 512 KB
Program Memory Type	FLASH	FLASH
RAM Size	8 K	8 - 96 K
RAM Size	-	2K x 8, 4K x 8
Speed	72 MHz	48 - 72 MHz
Supplier Device Package	33-QFN (4x4)	64-LQFP (7x7), 48-QFN (5x5), 33-QFN (4x4), 24-QFN (3x3), 48-LQFP (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V	1.8 V

M031 Series

IC MCU 32BIT 32KB 64LQFP

Part	Speed	Mounting Type	Core Processor	RAM Size	Program Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Connectivity	Supplier Device Package	Oscillator Type	Peripherals	Core Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Data Converters	Data Converters	Data Converters [custom]	RAM Size	Data Converters [custom]	Data Converters [custom]
Nuvoton Technology Corporation M031SC2AE	48 MHz	Surface Mount	ARM® Cortex®-M0	8 K	FLASH	105 °C	-40 °C	64-LQFP	EBI/EMI, I2C, I2S, SPI, UART/USART	64-LQFP (7x7)	Internal	Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT	32-Bit	55	1.8 V	3.6 V	32 KB	SAR	12 b	16
Nuvoton Technology Corporation M031BTYD2AN	48 MHz	Surface Mount	ARM® Cortex®-M0	8 K	FLASH	85 °C	-40 °C	48-VFQFN Exposed Pad	FIFO, I2C, IrDA, SCI, SPI, UART/USART	48-QFN (5x5)	External, Internal	Brown-out Detect/Reset, DMA, LVR, POR, PWM, WDT	32-Bit	29	1.8 V	3.6 V	64 KB	SAR	12 b	16
Nuvoton Technology Corporation M031TB0AE	48 MHz	Surface Mount	ARM® Cortex®-M0		FLASH	105 °C	-40 °C		EBI/EMI, I2C, I2S, SPI, UART/USART	33-QFN (4x4)	Internal	Brown-out Detect/Reset, LVD, POR, PWM, WDT	32-Bit	27	1.8 V	3.6 V	16 KB	A/D 10x12b SAR			2K x 8
Nuvoton Technology Corporation M031GGC2AE	72 MHz	Surface Mount	ARM® Cortex®-M0	8 K	FLASH	105 °C	-40 °C	24-VFQFN	I2C, SMBus, SPI, UART/USART	24-QFN (3x3)	Internal	Brown-out Detect/Reset, I2S, POR, PWM, WDT	32-Bit	19	1.8 V	3.6 V	32 KB
Nuvoton Technology Corporation M031GTD2AE	72 MHz	Surface Mount	ARM® Cortex®-M0	8 K	FLASH	105 °C	-40 °C		I2C, SMBus, SPI, UART/USART	33-QFN (4x4)	Internal	Brown-out Detect/Reset, I2S, POR, PWM, WDT	32-Bit	28	1.8 V	3.6 V	64 KB					16x12b SAR	4x12b
Nuvoton Technology Corporation M031LE3AE	48 MHz	Surface Mount	ARM® Cortex®-M0	16 K	FLASH	105 °C	-40 °C	48-LQFP	EBI/EMI, I2C, I2S, SPI, UART/USART	48-LQFP (7x7)	Internal	Brown-out Detect/Reset, LVD, POR, PWM, WDT	32-Bit	42	1.8 V	3.6 V	128 KB	A/D 12x12b SAR
Nuvoton Technology Corporation M031SIAAE	48 MHz	Surface Mount	ARM® Cortex®-M0	96 K	FLASH	105 °C	-40 °C	64-LQFP	EBI/EMI, I2C, I2S, SPI, UART/USART, USB	64-LQFP (7x7)	Internal	Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT	32-Bit	51	1.8 V	3.6 V	512 KB	SAR	12 b	16
Nuvoton Technology Corporation M031GTC2AE	72 MHz	Surface Mount	ARM® Cortex®-M0	8 K	FLASH	105 °C	-40 °C		I2C, SMBus, SPI, UART/USART	33-QFN (4x4)	Internal	Brown-out Detect/Reset, I2S, POR, PWM, WDT	32-Bit	28	1.8 V	3.6 V	32 KB					16x12b SAR	4x12b
Nuvoton Technology Corporation M031TC1AE	48 MHz	Surface Mount	ARM® Cortex®-M0		FLASH	105 °C	-40 °C		EBI/EMI, I2C, I2S, SPI, UART/USART	33-QFN (4x4)	Internal	Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT	32-Bit	27	1.8 V	3.6 V	32 KB	A/D 10x12b SAR			4K x 8
Nuvoton Technology Corporation M031SD2AE	48 MHz	Surface Mount	ARM® Cortex®-M0	8 K	FLASH	105 °C	-40 °C	64-LQFP	EBI/EMI, I2C, I2S, SPI, UART/USART	64-LQFP (7x7)	Internal	Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT	32-Bit	55	1.8 V	3.6 V	64 KB	SAR	12 b	16
