74HC126S14-13
ActiveDiodes Inc
BUFFER, NON INVERTING, QUAD, 1 INPUT, 14 PINS, SOIC, 74HC126
74HC126S14-13
ActiveDiodes Inc
BUFFER, NON INVERTING, QUAD, 1 INPUT, 14 PINS, SOIC, 74HC126
Description
General part information
74HC126S14-13
Wide Supply Voltage Range from 2.0V to 6.0V
Sinks or Sources 4mA at VCC = 4.5V
CMOS Low Power Consumption
Technical Specifications
Parameters and characteristics for this part
| Specification | 74HC126S14-13 |
|---|---|
| Current - Output High | 5.2 mA |
| Current - Output Low | 5.2 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 bits |
| Number of Elements | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 3-State |
| Package Length | 0.154 in |

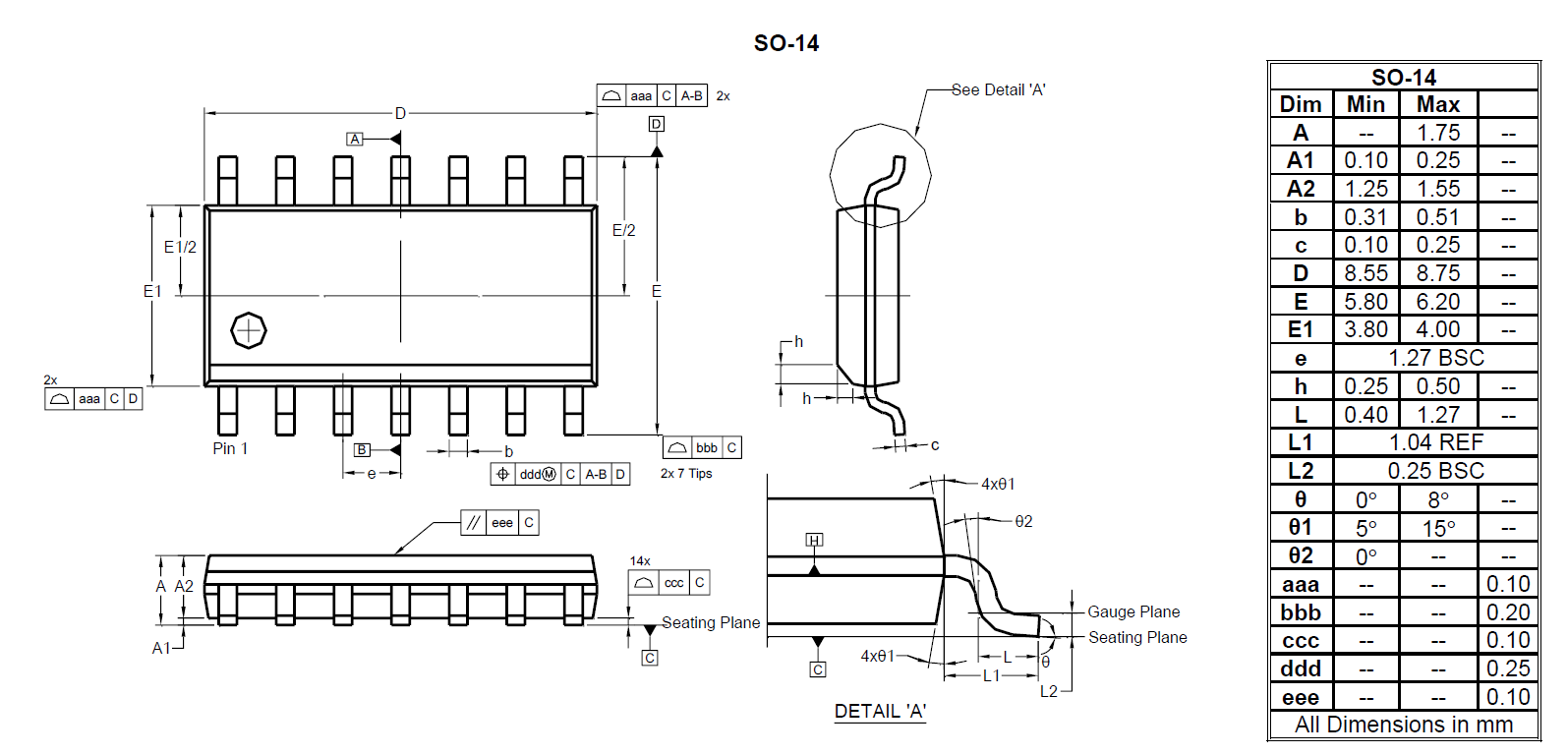

| Package Name | 14-SOIC, 14-SO |
| Package Width | 3.9 mm |
| Voltage - Supply (Maximum) | 6 V |
| Voltage - Supply (Minimum) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
