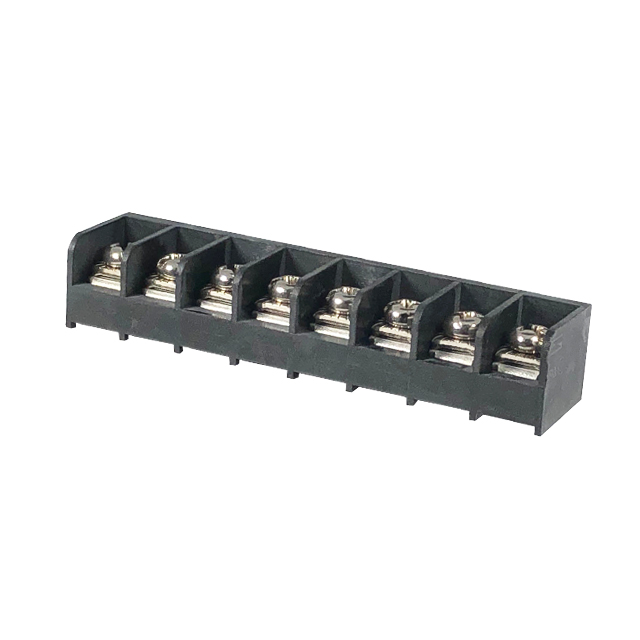

DT-39-B01W-08
ActiveDinkle Corporation, USA
3 WALL BARRIER STRP 8P, 0.325"
DT-39-B01W-08
ActiveDinkle Corporation, USA
3 WALL BARRIER STRP 8P, 0.325"
Description
General part information
DT-39-B01W-08
8 Circuit 0.325" (8.26mm) Barrier Block Connector Screws with Captive Plate
Technical Specifications
Parameters and characteristics for this part
| Specification | DT-39-B01W-08 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 10 A |
| Number of Circuits | 8 |
| Number of Rows | 1 |
| Number of Wire Entries | 8 |
| Pitch | 0.325 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
