Q-7100V0005018I

Active

Amphenol Custom Cable

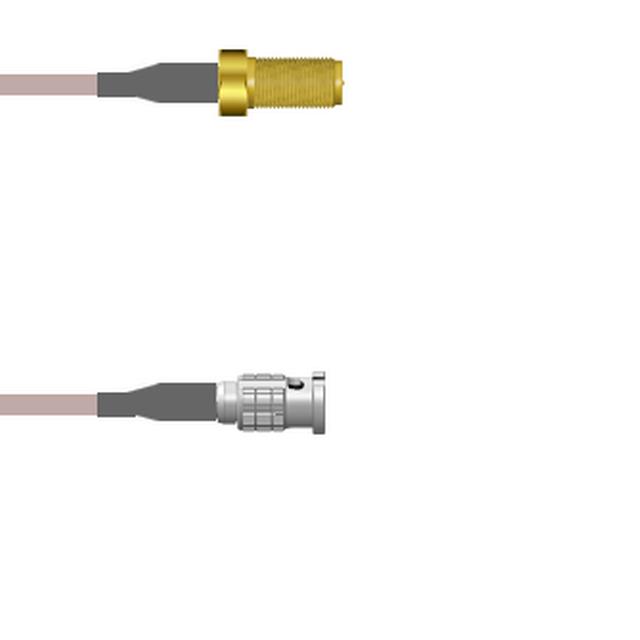

CBL ASSY RPSMA-HDBNC JCK-PLG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-7100V0005018I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-HDBNC JCK-PLG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-7100V0005018I	Q-7100V0 Series

1st Connector	RP-SMA Jack	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	HD-BNC Plug	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-316	RG-174, RG-316
Color	Copper	Black, Copper
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	3 GHz	1 - 3 GHz
Length	-	3 - 118.1 in
Length	-	4 - 9.8 ft
Length	-	1.5 - 1200 m
Length	-	9.843 "
Length [x]	457.2 mm	457.2 mm
Length [x]	457.2 mm	250 - 457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	RP-SMA to HD-BNC	RP-SMA to HD-BNC

Q-7100V0 Series

CBL ASSY RPSMA-HDBNC JCK-PL 4.9'

Part	Cable Type	2nd Contact Gender	Style	Connector Impedance	1st Connector	2nd Connector	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	1st Connector Mounting Type	Features	Length	Length	Length	Frequency - Max [Max]	Color	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-7100V00031.5M	RG-174	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	59.1 in	4.9 ft	1.5 m	1 GHz	Black	50 Ohms
Amphenol Custom Cable Q-7100V00050.5M	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	19.69 "		50 cm	3 GHz	Copper	50 Ohms
Amphenol Custom Cable Q-7100V00051.5M	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	59.1 in	4.9 ft	1.5 m	3 GHz	Copper	50 Ohms
Amphenol Custom Cable Q-7100V00052.5M	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	98.4 in	8.2 '	2.5 m	3 GHz	Copper	50 Ohms
Amphenol Custom Cable Q-7100V0005002M	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	78.7 in	6.6 ft	2 m	3 GHz	Copper	50 Ohms
Amphenol Custom Cable Q-7100V00032.5M	RG-174	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	98.4 in	8.2 '	2.5 m	1 GHz	Black	50 Ohms
Amphenol Custom Cable Q-7100V0005006I	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6 in		152.4 mm	3 GHz	Copper	50 Ohms
Amphenol Custom Cable Q-7100V0005.25M	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded				3 GHz	Copper	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-7100V0005003M	RG-316	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	118.1 in	9.8 '	3 m	3 GHz	Copper	50 Ohms
Amphenol Custom Cable Q-7100V0003072I	RG-174	Male	RP-SMA to HD-BNC	50 Ohms	RP-SMA Jack	HD-BNC Plug	Male	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	72 in	6 ft	1.8 m	1 GHz	Black	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.52
		25	$ 75.02
		50	$ 73.53
		100	$ 72.03
		250	$ 70.54

Description

General part information

Q-7100V0 Series

Cable Assembly Coaxial RP-SMA to HD-BNC RG-316 18.00" (457.20mm)
