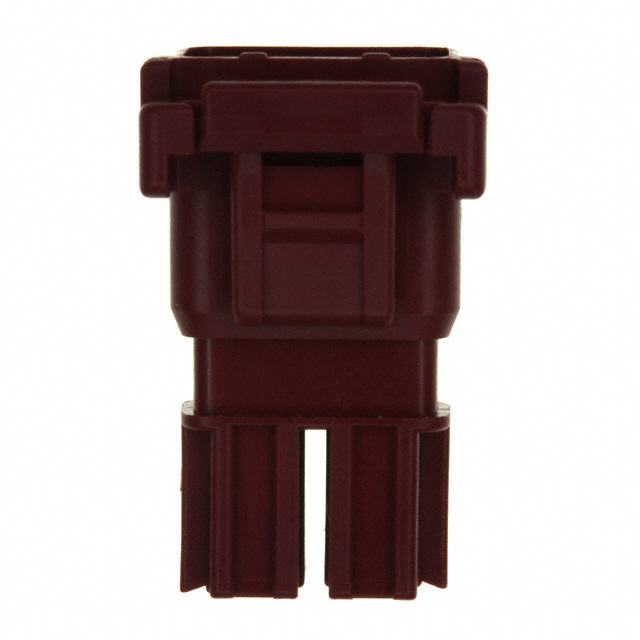

WPJR-02V-2-R(NN)

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	WPJR-02V-2-R(NN)

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

Part	Insulation Material	Number of Rows	Contact Termination	Connector Type	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Note	Mounting Type	Color
JST Sales America Inc. WPJR-02V-2-R(NN)	Polybutylene Terephthalate (PBT) Glass Filled	1	Crimp	Receptacle	Female Socket	5 mm	0.197 in	2	-25 °C	85 °C	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Red
JST Sales America Inc. WPJR-03V-2-R		1	Crimp	Receptacle	Female Socket	5 mm	0.197 in		-25 °C	85 °C	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Rectangular Connectors - Housings Receptacle Red 0.197" (5.00mm)
