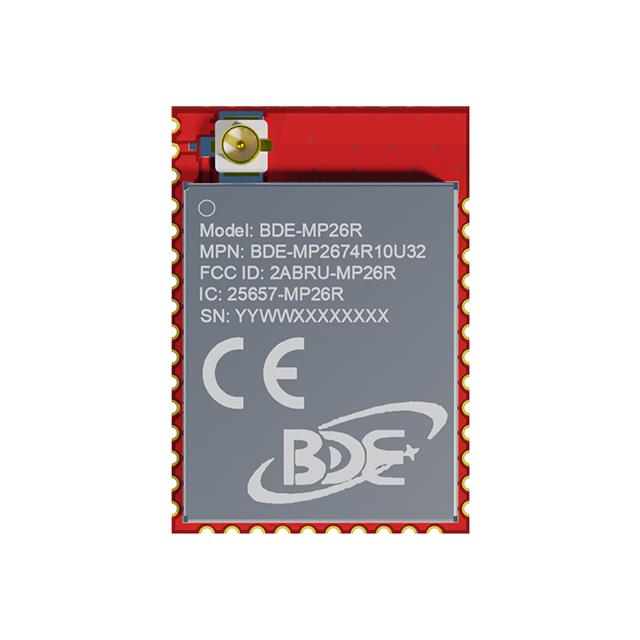

BDE-MP2674R10U32
ActiveBDE Technology
CC2674R10 MUTI-BAND MUTI-PROTOCO
BDE-MP2674R10U32
ActiveBDE Technology
CC2674R10 MUTI-BAND MUTI-PROTOCO
Description
General part information
BDE-MP2674R10U32
802.15.4, Bluetooth, General ISM < 1GHz 6LoWPAN, Bluetooth v5.3, Thread, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BDE-MP2674R10U32 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 6.4 mA |
| Current - Transmitting (Max) | 9.8 mA |
| Current - Transmitting (Min) | 7.3 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size (Flash) | 32 MB |
| Memory Size (SRAM) | 256 kB |
| Memory Type | RAM, Flash |
| Modulation | 4-FSK, 2-FSK, 4-GFSK, MSK, 2-GFSK, O-QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 5 dBm |
| Protocol | Zigbee®, 6LoWPAN, Bluetooth v5.3, Thread |
| RF Family/Standard | General ISM < 1GHz, 802.15.4, Bluetooth |
| Sensitivity | -104 dBm |
| Serial Interfaces | SPI, UART, I2S, I2C, GPIO, ADC |
| Utilized IC / Part | CC2674R10 |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 1.8 V |
