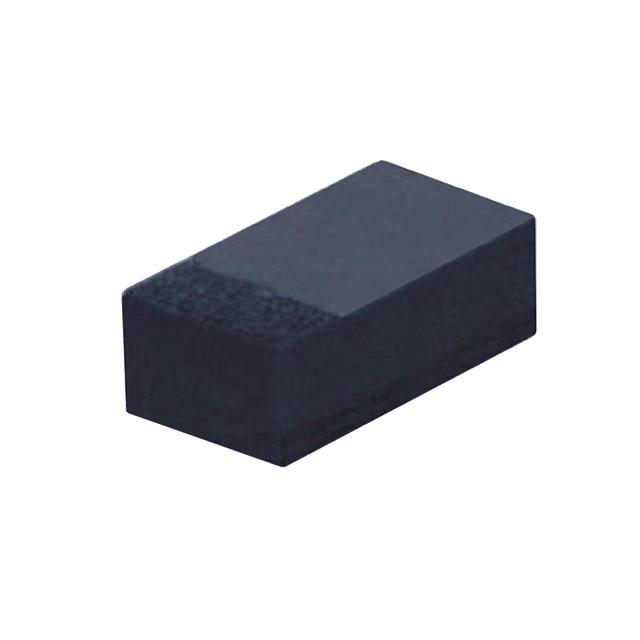

CDBURT0230LL-HF

Active

Comchip Technology

DIODE SCHOTTKY 20V 200MA 0603

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 20V 200MA 0603

Technical Specifications

Parameters and characteristics for this part

Specification	CDBURT0230LL-HF

Capacitance @ Vr, F	30 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	30 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SC-79, SOD-523F
Speed	Any Speed
Speed	200 mA
Supplier Device Package	0603/SOD-523F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	390 mV

DIODE SCHOTTKY 20V 200MA 0603

Part	Package / Case	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed
Comchip Technology CDBURT0230LL-HF	SC-79, SOD-523F	Surface Mount	200 mA	390 mV	Schottky	30 pF	30 µA	0603/SOD-523F	20 V	-55 °C	125 °C	Any Speed	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 20 V 200mA Surface Mount 0603/SOD-523F
