PCA.00.250.CTLC27

Active

LEMO

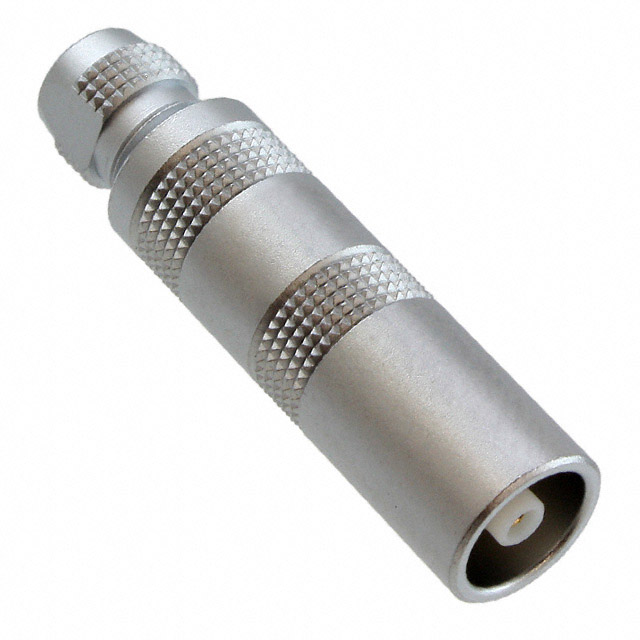

CONN NIMCAMAC RCPT STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

Documents00,01 Series Connectors Catalog Datasheet

PCA.00.250.CTLC27

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Deep-Dive with AI

Documents00,01 Series Connectors Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.64
		10	$ 17.02
		25	$ 16.13
		50	$ 15.90
		100	$ 14.03
		250	$ 13.09
		500	$ 12.81

Description

General part information

PCA.00 Series

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

00,01 Series Connectors Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCA.00.250.CTLC27	PCA.00 Series

Backshell Material, Plating	-	Brass, Chrome
Body Finish	Chrome	Chrome, Nickel
Body Material	Brass	Brass
Cable Group	RG-174, 179B, 316, 187A, 188A	RG-174A, RG-403, RG-316, RG-178B, 196A, 174A, 187, RG-174, 179, 188, 316, RG-195A, 179B, 187A, 188A
Cable Opening	-	0.114 in
Cable Opening	-	2.9 mm
Cable Opening	-	2.2 mm
Cable Opening	-	1.7 mm
Cable Opening	-	0.067 in
Cable Opening	-	0.087 in
Center Contact Material	Bronze	Brass, Bronze
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549, Triaxial
Connector Type	Receptacle, Female Socket	Male Pin, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	-	Bronze
Contact Termination	Solder	Solder
Current Rating (Amps)	-	8 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
Housing Color	Silver	Silver, Natural
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	-	Polytetrafluoroethylene (PTFE)
Mating Cycles	5000	5000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Number of Positions	-	1
Operating Temperature [Max]	260 ░C	250 - 260 ░C
Operating Temperature [Min]	-55 °C	-55 - -50 °C
Orientation	-	A
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	113
Shield Termination	Clamp	Clamp
Shielding	-	Shielded
Voltage Rating	700 VDC	700 VDC

PCA.00 Series

CONN RCPT STR 50 OHM SOLDER

Part	Voltage Rating	Dielectric Material	Cable Group	Mating Cycles	Connector Style	Connector Type	Body Finish	Ingress Protection	Center Contact Plating	Impedance	Body Material	Housing Color	Mounting Type	Fastening Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Shield Termination	Number of Ports	Orientation	Current Rating (Amps)	Number of Positions	Shell Finish	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Features	Insert Material	Shielding	Contact Material	Color	Shell Size - Insert	Backshell Material, Plating	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
LEMO PCA.00.250.CTAC31	700 VDC	Polytetrafluoroethylene (PTFE)	RG-174A	5000	NIM-CAMAC CD/N 549	Male Pin, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Brass	-55 °C	260 ░C	Solder	Clamp
LEMO PCA.00.650.CLLC35	700 VDC	Polyetheretherketone (PEEK)	RG-403	5000	NIM-CAMAC CD/N 549, Triaxial	Female Socket, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Bronze	-55 °C	260 ░C	Solder	Clamp	1
LEMO PCA.00.250.CLLC31Z	700 VDC	Polyetheretherketone (PEEK)	RG-174A	5000	NIM-CAMAC CD/N 549	Female Socket, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Bronze	-55 °C	260 ░C	Solder	Clamp
LEMO PCA.00.113.CTLC29						Receptacle, Female Sockets		IP50					Free Hanging (In-Line)	Push-Pull		-55 °C	250 °C				A	8 A	1	Chrome	Brass	59 Áin	1.5 Ám	Gold	0.114 in	2.9 mm	Backshell	Polytetrafluoroethylene (PTFE)	Shielded	Bronze	Silver	113	Brass, Chrome	Metal
LEMO PCA.00.250.CTLC17	700 VDC	Polytetrafluoroethylene (PTFE)		5000	NIM-CAMAC CD/N 549	Female Socket, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Bronze	-55 °C	260 ░C	Solder	Clamp	1
LEMO PCA.00.250.CTAC29	700 VDC	Polytetrafluoroethylene (PTFE)	RG-316	5000	NIM-CAMAC CD/N 549	Male Pin, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Bronze	-55 °C	260 ░C	Solder	Clamp	1
LEMO PCA.00.250.CLLC29	700 VDC	Polyetheretherketone (PEEK)	RG-316	5000	NIM-CAMAC CD/N 549	Female Socket, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Bronze	-55 °C	260 ░C	Solder	Clamp
LEMO PCA.00.250.GTLC31	700 VDC	Polytetrafluoroethylene (PTFE)	RG-174A	5000	NIM-CAMAC CD/N 549	Female Socket, Receptacle		IP50	Gold	50 Ohms		Natural	Free Hanging (In-Line)	Push-Pull	Bronze	-50 °C	250 °C	Solder	Clamp
LEMO PCA.00.250.CTLK42Z	700 VDC	Polytetrafluoroethylene (PTFE)		5000	NIM-CAMAC CD/N 549	Female Socket, Receptacle	Chrome	IP50	Gold	50 Ohms	Brass	Silver	Free Hanging (In-Line)	Push-Pull	Bronze	-55 °C	260 ░C	Solder	Clamp	1
LEMO PCA.00.113.CTLC22						Receptacle, Female Sockets		IP50					Free Hanging (In-Line)	Push-Pull		-55 °C	250 °C				A	8 A	1	Chrome	Brass	59 Áin	1.5 Ám	Gold			Backshell	Polytetrafluoroethylene (PTFE)	Shielded	Bronze	Silver	113	Brass, Chrome	Metal	2.2 mm	1.7 mm	0.067 in	0.087 in
