Description
General part information

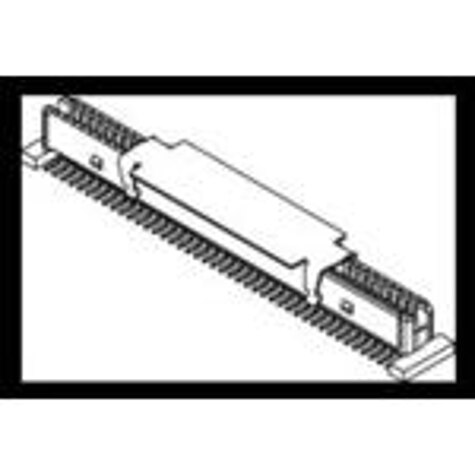

0717422002
BOARD TO BOARD & MEZZANINE CONNECTORS MEZZANINE 1MM BTB REC 10AU 84CKT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0717422002 |
|---|---|
| Connector Type | Outer Shroud Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Features | Board Guide |
| Height Above Board | 0.287 in |
| Mated Stacking Height Options | 12mm, 10mm |
| Mounting Type | Surface Mount |
| Number of Positions | 84 |
| Number of Rows | 2 |
| Pitch | 0.039 in |
