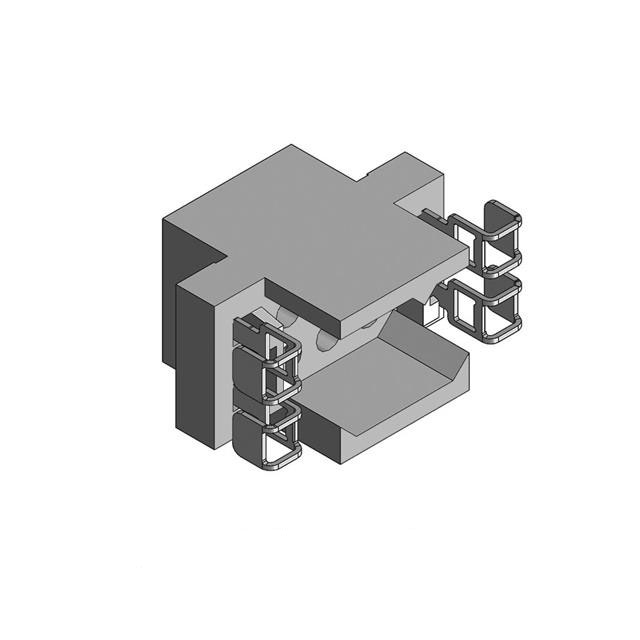

PM216MBALOO
ObsoleteAnderson Power Products, Inc.
POWERMOD 2X16 PIN STRAIGHT PCB 3
Deep-Dive with AI
Search across all available documentation for this part.
PM216MBALOO
ObsoleteAnderson Power Products, Inc.
POWERMOD 2X16 PIN STRAIGHT PCB 3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM216MBALOO |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin Alloy |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 0.15 in |
| Contact Length - Post [x] | 3.81 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Power |
| Current Rating (Amps) | 30 A |
| Fastening Type | Latch Lock |
| Insulation Color | Black |
| Insulation Height | 0.6 in |
| Insulation Height | 15.24 mm |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 180 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 5 mm |
| Pitch - Mating | 0.197 " |
| Row Spacing - Mating | 5 mm |
| Row Spacing - Mating | 0.197 in |
| Shrouding | Shrouded - 2 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM216MBALOO
Connector Header Through Hole 16 position 0.197" (5.00mm)
Documents
Technical documentation and resources
No documents available
