1.5KE110A-B
ObsoleteDiodes Inc
1500W TRANSIENT VOLTAGE SUPPRESSOR
Deep-Dive with AI
Search across all available documentation for this part.
1.5KE110A-B
ObsoleteDiodes Inc
1500W TRANSIENT VOLTAGE SUPPRESSOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1.5KE110A-B | 1.5KE110 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Bidirectional Channels | - | 1 |
| Current - Peak Pulse (10/1000µs) | 9.9 A | 9.9 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 175 ░C | 175 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |

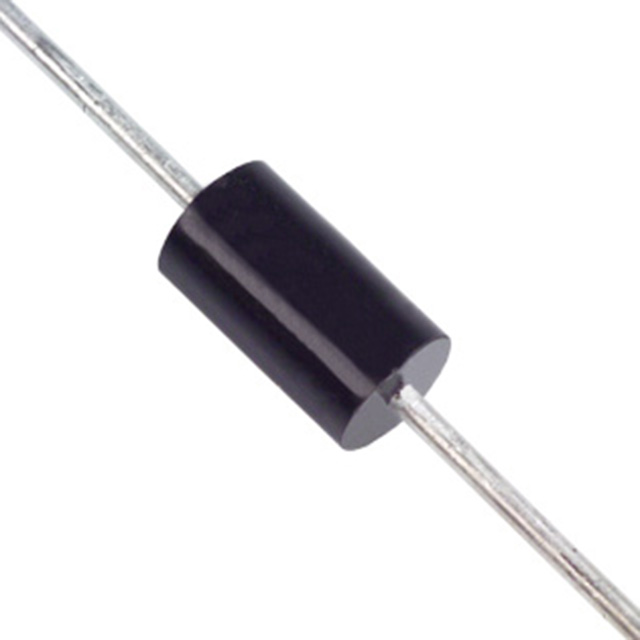

| Package / Case | Axial, DO-27, DO-201AA | Axial, DO-27, DO-201AA |
| Power - Peak Pulse | 1.5 kW | 1.5 kW |
| Power - Peak Pulse | 1500 W | 1500 W |
| Power Line Protection | False | False |
| Supplier Device Package | DO-201 | DO-201 |
| Type | Zener | Zener |
| Unidirectional Channels [custom] | 1 | 1 |
| Voltage - Breakdown (Min) [Min] | 105 V | 105 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 152 V | 152 V |
| Voltage - Reverse Standoff (Typ) | 94 V | 94 V |
1.5KE110 Series
1500W Transient Voltage Suppressor
| Part | Applications | Power - Peak Pulse | Power - Peak Pulse | Voltage - Reverse Standoff (Typ) | Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Clamping (Max) @ Ipp [Max] | Power Line Protection | Package / Case | Mounting Type | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Unidirectional Channels [custom] | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc 1.5KE110A-T | General Purpose | 1.5 kW | 1500 W | 94 V | Zener | -55 °C | 175 ░C | DO-201 | 152 V | Axial, DO-201AA, DO-27 | Through Hole | 9.9 A | 105 V | 1 | ||
Diodes Inc 1.5KE110CA-B | General Purpose | 1.5 kW | 1500 W | 94 V | Zener | -55 °C | 175 ░C | DO-201 | 152 V | Axial, DO-201AA, DO-27 | Through Hole | 9.9 A | 105 V | 1 | ||
Diodes Inc 1.5KE110A-B | General Purpose | 1.5 kW | 1500 W | 94 V | Zener | -55 °C | 175 ░C | DO-201 | 152 V | Axial, DO-201AA, DO-27 | Through Hole | 9.9 A | 105 V | 1 | ||
Diodes Inc 1.5KE110CA-T | General Purpose | 1.5 kW | 1500 W | 94 V | Zener | -55 °C | 175 ░C | DO-201 | 152 V | Axial, DO-201AA, DO-27 | Through Hole | 9.9 A | 105 V | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.31 | |
Description
General part information
1.5KE110 Series
1500W Transient Voltage Suppressor
