3-917807-2

Active

TE Connectivity AMP Connectors

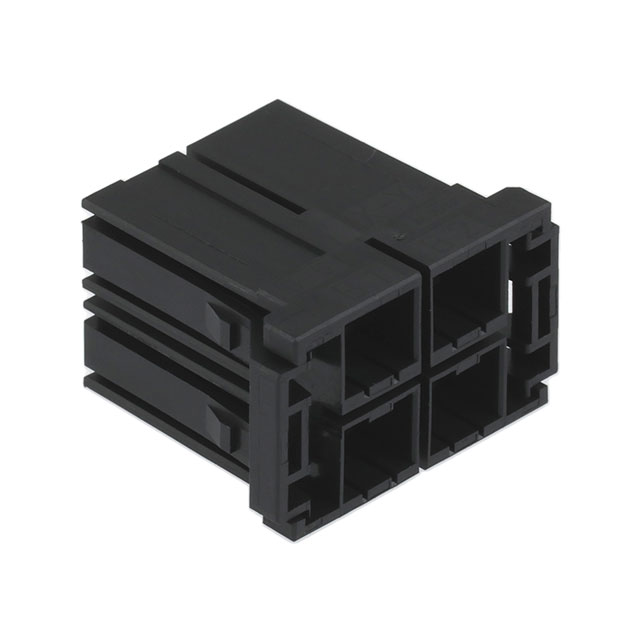

CONN RCPT HSG 4POS 10.16MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 4POS 10.16MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-917807-2	917807 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4 - 6
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	10.16 mm	10.16 mm
Pitch [x]	0.4 in	0.4 in
Row Spacing	0.4 in	0.4 in
Row Spacing	10.16 mm	10.16 mm

CONN RCPT HSG 6POS 10.16MM

Part	Pitch [x]	Pitch [x]	Contact Termination	Number of Positions	Color	Row Spacing	Row Spacing	Insulation Material	Note	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type
TE Connectivity AMP Connectors 3-917807-3	10.16 mm	0.4 in	Crimp	6	Black	0.4 in	10.16 mm	Glass Filled, Polyester, Thermoplastic	Contacts Not Included	Free Hanging (In-Line)	Receptacle	105 ░C	-55 °C	2	Female Socket
TE Connectivity AMP Connectors 3-917807-2	10.16 mm	0.4 in	Crimp	4	Black	0.4 in	10.16 mm	Glass Filled, Polyester, Thermoplastic	Contacts Not Included	Free Hanging (In-Line)	Receptacle	105 ░C	-55 °C	2	Female Socket
TE Connectivity AMP Connectors 1-917807-3	10.16 mm	0.4 in	Crimp	6	Black	0.4 in	10.16 mm	Glass Filled, Polyester, Thermoplastic	Contacts Not Included	Free Hanging (In-Line)	Receptacle	105 ░C	-55 °C	2	Female Socket
TE Connectivity AMP Connectors 2-917807-3	10.16 mm	0.4 in	Crimp	6	Black	0.4 in	10.16 mm	Glass Filled, Polyester, Thermoplastic	Contacts Not Included	Free Hanging (In-Line)	Receptacle	105 ░C	-55 °C	2	Female Socket
TE Connectivity AMP Connectors 1-917807-2	10.16 mm	0.4 in	Crimp	4	Black	0.4 in	10.16 mm	Glass Filled, Polyester, Thermoplastic	Contacts Not Included	Free Hanging (In-Line)	Receptacle	105 ░C	-55 °C	2	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.400" (10.16mm)
