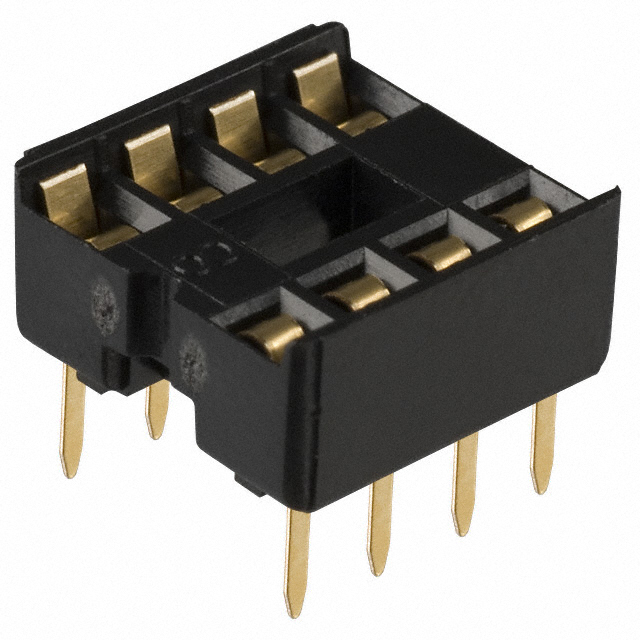

A08-LCG-T-R
ObsoleteAssmann WSW Components
CONN IC DIP SOCKET 8POS GOLD
A08-LCG-T-R
ObsoleteAssmann WSW Components
CONN IC DIP SOCKET 8POS GOLD
Description
General part information
A08-LCG-T-R
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | A08-LCG-T-R |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Resistance | 30 mOhm |
| Current Rating | 1 A |
| Features | Open Frame |
| Grid Columns | 4 |
| Grid Rows | 2 |
| Housing Material | Glass Filled, Polybutylene Terephthalate, PBT |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Post | 0.1 in |
| Row Spacing | 0.3 in |
| Termination | Solder |
| Termination Post Length | 0.13 in |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
