Molex

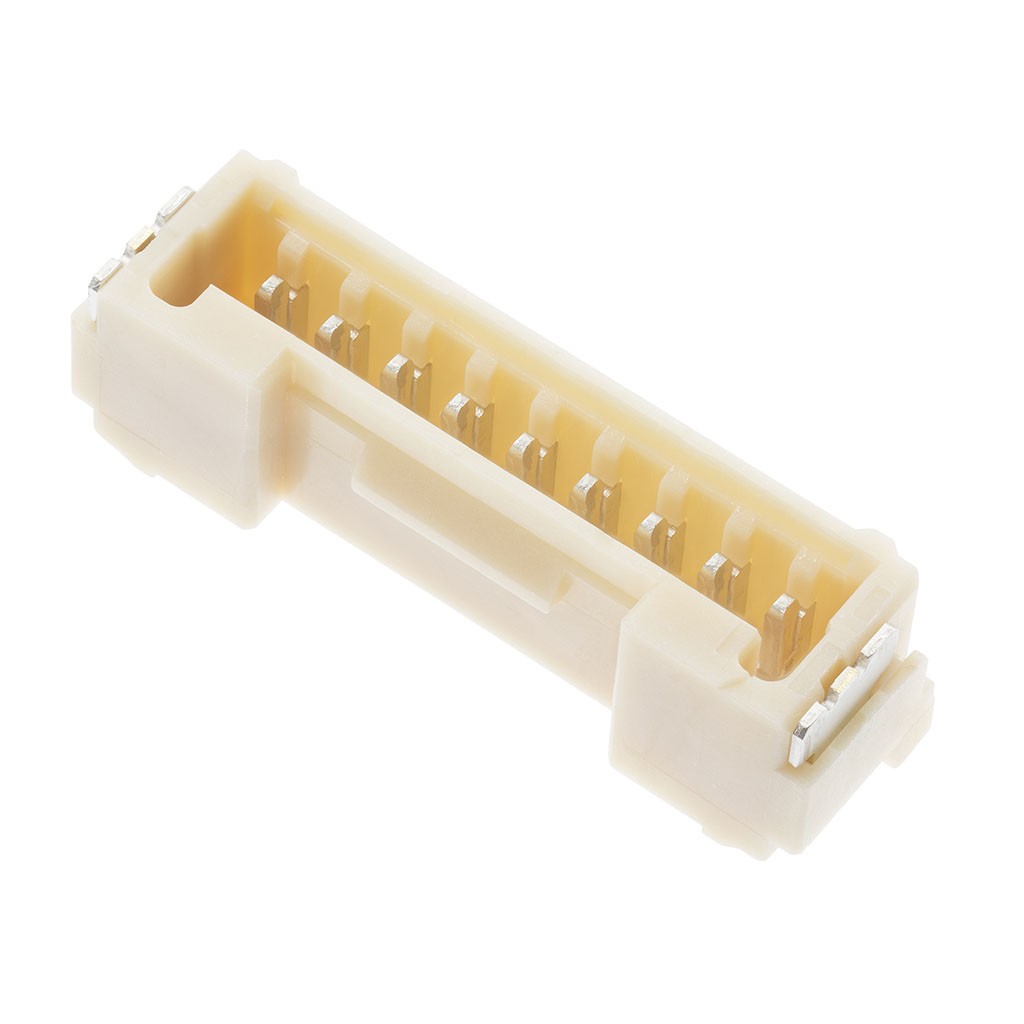

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, SURFACE MOUNT, 0.38ΜM GOLD PLATING, POSITIVE LOCK, 10 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Find alt
5055681031

5055681031

Active
Molex

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, SURFACE MOUNT, 0.38ΜM GOLD PLATING, POSITIVE LOCK, 10 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Find alt

Description

General part information

505568 Series

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, SURFACE MOUNT, 0.38ΜM GOLD PLATING, POSITIVE LOCK, 10 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification5055681031
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating15 µin
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypePush-Pull
FeaturesSolder Retention, Pick and Place
Insulation ColorBlack
Insulation Height0.165 in
Insulation MaterialNylon, Glass Filled, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions10
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.049 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating50 V
Voltage Rating (Type)DC
