FMAD1111
ObsoleteFairview Microwave
ADAPT PLUG-PLUG BMA SS 1.15 VSWR
FMAD1111
ObsoleteFairview Microwave
ADAPT PLUG-PLUG BMA SS 1.15 VSWR
Description
General part information
FMAD1111

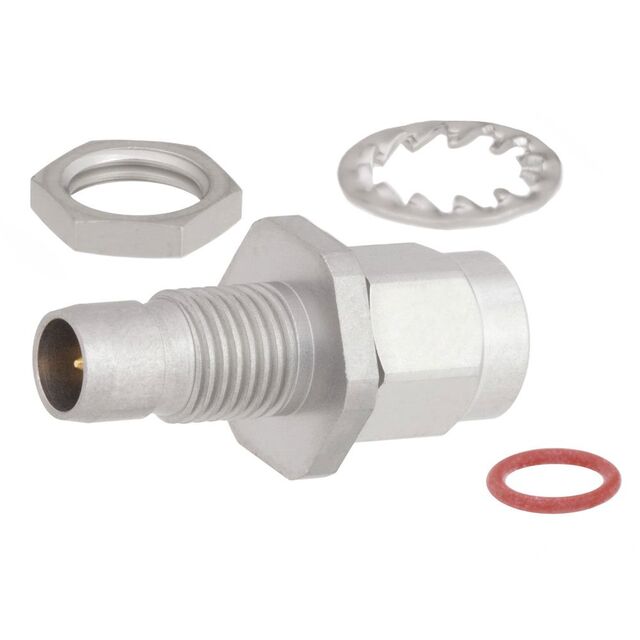

Adapter Coaxial Connector BMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1111 |
|---|---|
| Adapter Series | SMA to BMA |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BMA Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
