3005086
ActivePhoenix Contact
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², SCREW, 57 A
3005086
ActivePhoenix Contact
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², SCREW, 57 A
Description
General part information
3005086

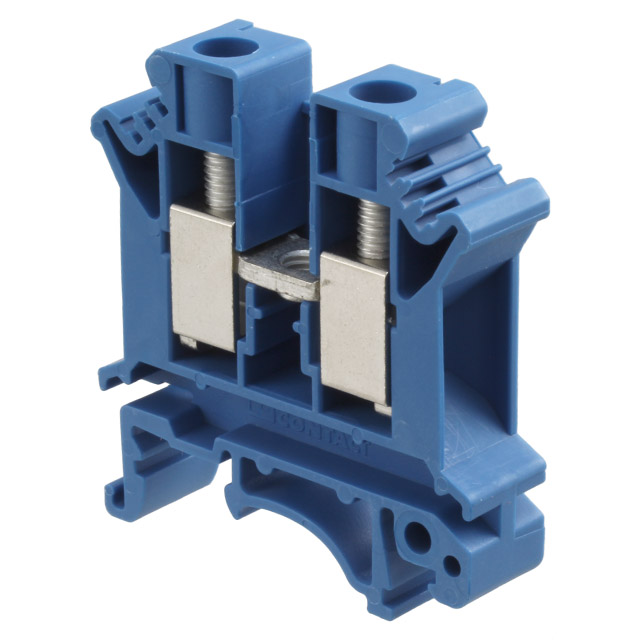

The 3005086 is a 2-way 57A blue DIN-rail mount universal feed-through Terminal Block with screw connection. It has PA insulator and M4 screw thread.
Technical Specifications
Parameters and characteristics for this part
| Specification | 3005086 |
|---|---|
| Color | Blue |
| Current - IEC | 57 A |
| Current - UL | 65 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 10 mm |
| Terminal Width | 10.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 6 AWG |
| Wire Gauge or Range - mm² (Maximum) | 16 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
