8473 0605000

Active

Belden Inc.

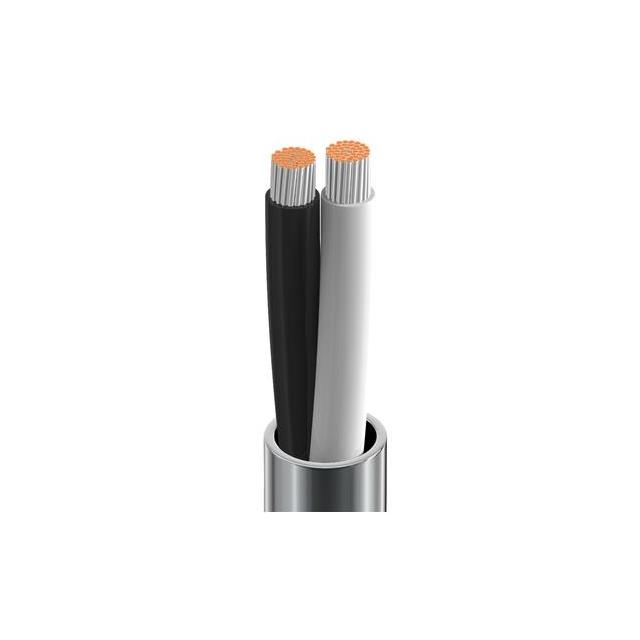

CABLE 2COND 14AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8473 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	42
Conductor Strand [custom]	30
Jacket (Insulation) Diameter [diameter]	0.356 in
Jacket (Insulation) Diameter [diameter]	9.04 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2587
Usage	Audio, Instrumentation, Control
Wire Gauge	13.5 AWG

Part	Ratings	Wire Gauge	Conductor Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket Color	Conductor Insulation	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors
Belden Inc. 8473 0601000	UL Style 2587	13.5 AWG	Copper Tinned	Multi-Conductor	0.356 in	9.04 mm	Poly-Vinyl Chloride (PVC)	42	30	1000 ft	304.8 m	Chrome	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	-20 C	90 °C	2
Belden Inc. 8473 0605000	UL Style 2587	13.5 AWG	Copper Tinned	Multi-Conductor	0.356 in	9.04 mm	Poly-Vinyl Chloride (PVC)	42	30			Chrome	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	-20 C	90 °C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.74

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 14 AWG 5000' (1524.0m)
