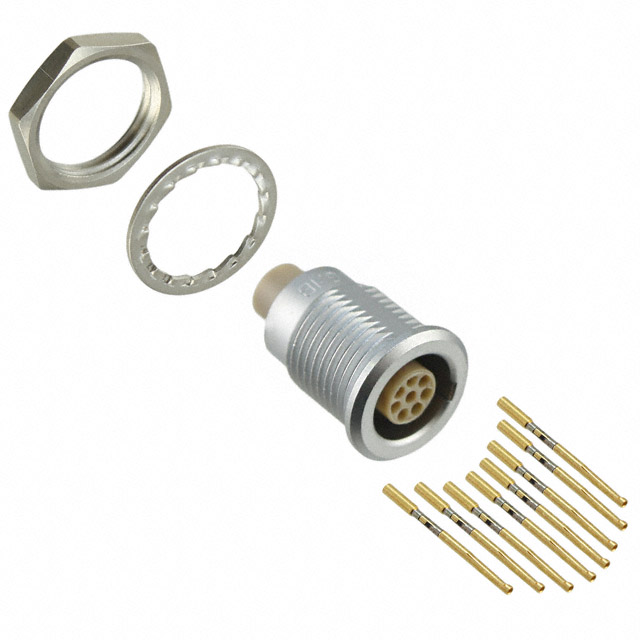

Specification	EGG.1B.308.CYM

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	5 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	8
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	308
Shell Size - Insert	308
Shielding	Shielded
Termination	Crimp

EGG.1B Series

Part	Fastening Type	Current Rating	Shielding	Orientation	Contact Material	Shell Finish	Shell Material	Contact Finish - Mating	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Color	Termination	Contact Finish Thickness - Mating	Material Flammability Rating	Mounting Feature	Number of Positions	Insert Material	Primary Material	Connector Type	Features	Type	Contact Finish	Contact Termination	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Size	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Type
LEMO EGG.1B.310.CLL	Push-Pull	2.5 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount	Dust Protected	IP50	310	310	250 °C	-55 °C	Silver	Solder Cup	59 µin	UL94 V-0	Bulkhead Rear Side Nut	10	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
LEMO EGG.1B.307.CLL	Push-Pull	7 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount	Dust Protected	IP50	307	307	250 °C	-55 °C	Silver	Solder Cup	59 µin	UL94 V-0	Bulkhead Rear Side Nut	7	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
LEMO EGG.1B.305.CLL	Push-Pull	9 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount	Dust Protected	IP50	305	305	250 °C	-55 °C	Silver	Solder Cup	59 µin	UL94 V-0	Bulkhead Rear Side Nut	5	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
LEMO EGG.1B.306.CLN	Push-Pull	7 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount Through Hole	Dust Protected	IP50	306	306	250 °C	-55 °C	Silver	Solder	59 µin	UL94 V-0	Bulkhead Rear Side Nut	6	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
LEMO EGG.1B.307.ZLLT		7 A	Shielded	G	Bronze			Gold		Dust Protected	IP50	307	307	250 °C	-55 °C		Solder Cup	59 µin	UL94 V-0		7	PEEK Polyetheretherketone		Female Sockets Insert	Insert Only Requires Shell
LEMO EGG.1B.314.CLL	Push-Pull	2 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount	Dust Protected	IP50	314	314	250 °C	-55 °C	Silver	Solder Cup	59 µin	UL94 V-0	Bulkhead Rear Side Nut	14	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
LEMO EGG.1B.305.ZYM		9 A	Shielded	G	Bronze			Gold		Dust Protected	IP50	305	305	250 °C	-55 °C		Crimp	59 µin	UL94 V-0		5	PEEK Polyetheretherketone		Female Sockets Insert	Insert Only Requires Shell
LEMO EGG.1B.314.CLN	Push-Pull	2 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount Through Hole	Dust Protected	IP50	314	314	250 °C	-55 °C	Silver	Solder	59 µin	UL94 V-0	Bulkhead Rear Side Nut	14	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
LEMO EGG.1B.665.ZZE					Bronze																					Machined Signal	Gold	Crimp	0.5 mm²	1 mm²	1.3 mm	20 AWG	18 AWG	Socket
LEMO EGG.1B.702.CJL	Push-Pull	12 A	Shielded	G	Bronze	Chrome	Brass	Gold	Panel Mount	Dust Protected	IP50	702	702	250 °C	-55 °C	Silver	Solder Cup	59 µin	UL94 V-0	Bulkhead Rear Side Nut	3	PEEK Polyetheretherketone	Metal	Female Sockets Receptacle
