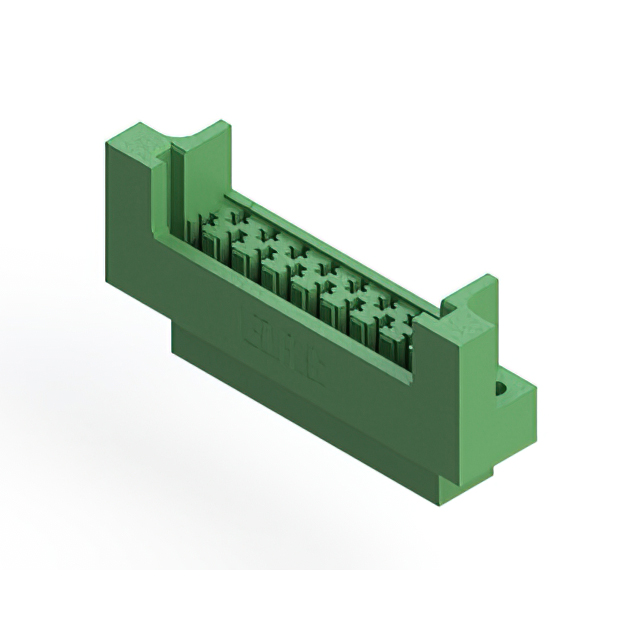

Specification	415-017-000-222

Card Thickness	0.093 in
Card Type	Non Specified, Dual Edge
Color	Green
Features	Card Guides
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Material - Insulation	Diallyl Phthalate, DAP
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	17
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	5.08 mm

415-017 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Note	Material - Insulation	Number of Positions	Flange Feature Diameter	Flange Feature	Color	Card Thickness	Card Type	Pitch	Contact Material	Contact Finish Thickness	Mounting Type	Termination	Number of Rows	Contact Finish	Gender	Termination Rows	Features
EDAC Inc. 415-017-000-122	125 °C	-65 °C	UL94 V-0	Contacts Not Included	DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.093 in	Dual Edge Non Specified	5.08 mm
EDAC Inc. 415-017-500-112	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.062 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Solder Eyelet(s)	2	Gold	Female	2 rows
EDAC Inc. 415-017-542-222	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.093 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Wire Wrap	2	Gold	Female	2 rows	Card Guides
EDAC Inc. 415-017-542-112	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.062 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Wire Wrap	2	Gold	Female	2 rows
EDAC Inc. 415-017-541-122	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.093 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Wire Wrap	2	Gold	Female	2 rows
EDAC Inc. 415-017-520-112	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.062 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Solder	2	Gold	Female	2 rows
EDAC Inc. 415-017-520-122	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.093 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Solder	2	Gold	Female	2 rows
EDAC Inc. 415-017-500-122	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.093 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Solder Eyelet(s)	2	Gold	Female	2 rows
EDAC Inc. 415-017-000-112	125 °C	-65 °C	UL94 V-0	Contacts Not Included	DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.062 in	Dual Edge Non Specified	5.08 mm
EDAC Inc. 415-017-541-112	125 °C	-65 °C			DAP Diallyl Phthalate	17	0.128 in	Top Mount Opening Unthreaded	Green	0.062 in	Dual Edge Non Specified	5.08 mm	Copper Alloy	10 Ąin	Panel Mount Through Hole	Wire Wrap	2	Gold	Female	2 rows
