SQT-0180-F0-SMA-02
ActiveCinch Connectivity Solutions
SPACE QUALIFIED TERMINATION, SMA
SQT-0180-F0-SMA-02
ActiveCinch Connectivity Solutions
SPACE QUALIFIED TERMINATION, SMA
Description
General part information
SQT-0180-F0-SMA-02

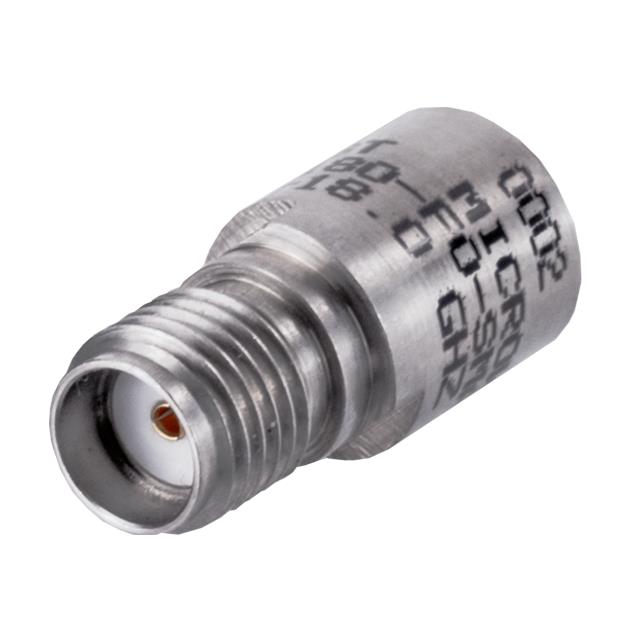

Terminator Coax Connector Jack, Female Socket SMA 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SQT-0180-F0-SMA-02 |
|---|---|
| Body Material | Stainless Steel |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Cap, Free Hanging |
