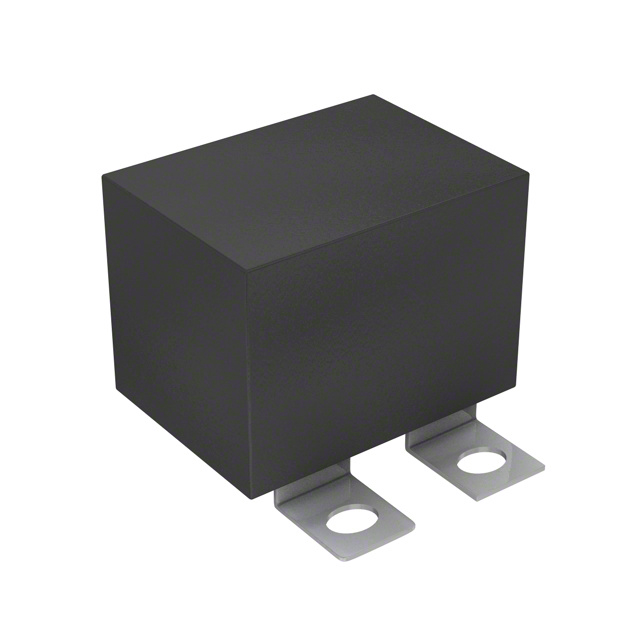

Specification	SCD684K202A3Z25-F

Applications	Snubber
Capacitance	0.68 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	8 mOhm
Height - Seated (Max)	1.5 in
Lead Spacing	1 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Package / Case	Rectangular Box
Size / Dimension Length	2.051 in
Size / Dimension Width	1.5 in
Termination	Screw Terminals
Tolerance	10 %
Voltage Rating - AC	630 V
Voltage Rating - DC	2 kVDC
