PCHC0412HP-100M-RC
ActiveAllied Components International
10UH +/-20% PWR CHOKE HI-CURRENT
PCHC0412HP-100M-RC
ActiveAllied Components International
10UH +/-20% PWR CHOKE HI-CURRENT
Description
General part information
PCHC0412HP-100M-RC

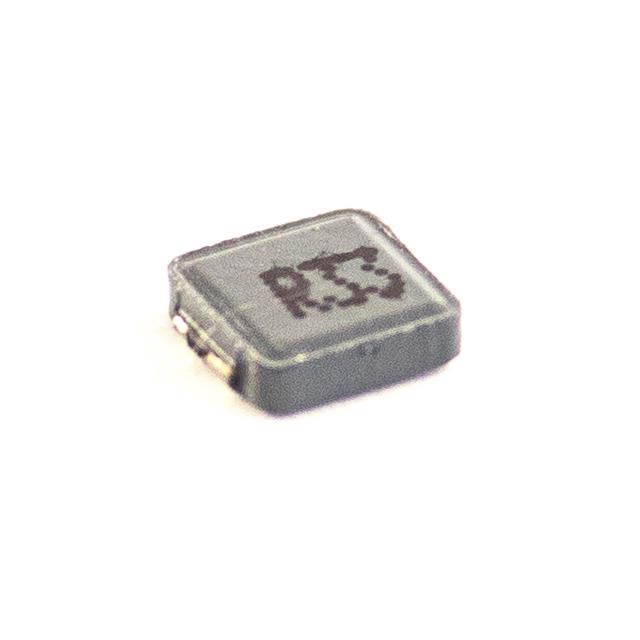

10 µH Shielded Inductor 1.3 A 463mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCHC0412HP-100M-RC |
|---|---|
| Current - Saturation (Isat) | 1.4 A |
| Current Rating | 1.3 A |
| DC Resistance (DCR) (Max) | 463 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.175 in |
| Size / Dimension Width | 0.16 in |
| Tolerance | 20 % |
