DPC6137W-TU-V
ActiveDiodes Inc
PHOTO COUPLER MDIP-8 TUBE 45PCS
DPC6137W-TU-V
ActiveDiodes Inc
PHOTO COUPLER MDIP-8 TUBE 45PCS
Description
General part information
DPC6137W-TU-V
PHOTO COUPLER MDIP-8 TUBE 45PCS
Technical Specifications
Parameters and characteristics for this part
| Specification | DPC6137W-TU-V |
|---|---|
| Common Mode Transient Immunity (Min) | 1 kV/µs |
| Current - DC Forward (If) (Max) | 25 mA |
| Current - Output / Channel | 50 mA |
| Data Rate | 10 Mbps |
| Fall Time (Typ) | 12 ns |
| Input Type | DC |
| Inputs - Side 1 | 1 |
| Inputs - Side 2 | 0 |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Open Collector, Schottky Clamped |
| Package Length | 10.16 mm |

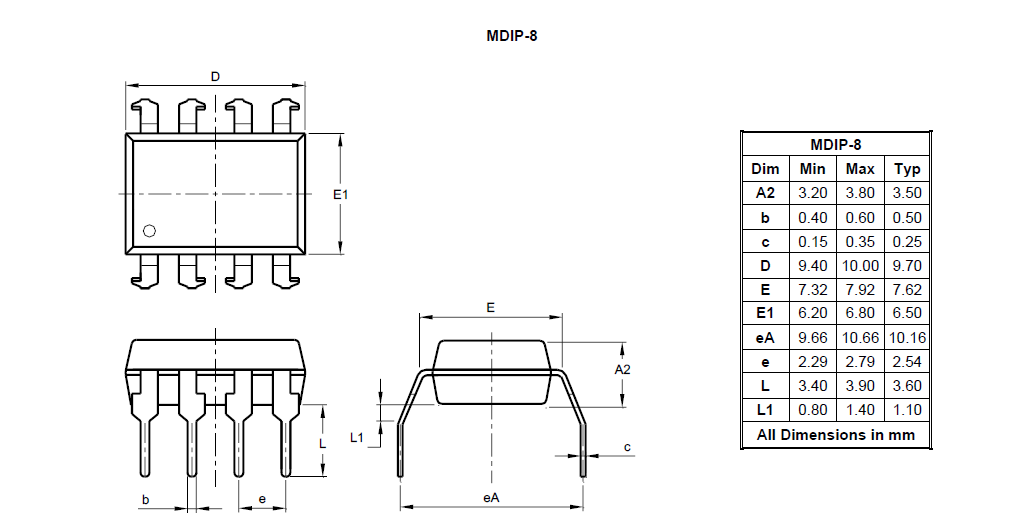

| Package Name | 8-MDIP, 8-DIP |
| Package Width | 10.16 mm |
| Propagation Delay tpHL (Max) | 75 ns |
| Propagation Delay tpLH (Max) | 75 ns |
| Rise Time (Typ) | 30 ns |
| Voltage - Forward (Vf) (Typ) | 1.4 V |
| Voltage - Isolation | 5000 Vrms |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
