CB1.32D-IPX-SARMGT-12IN
ActiveLighthorse Technologies, Inc
COAX CBL MHF1 TO RP-SMA 12"
CB1.32D-IPX-SARMGT-12IN
ActiveLighthorse Technologies, Inc
COAX CBL MHF1 TO RP-SMA 12"
Description
General part information
CB1.32D-IPX-SARMGT-12IN

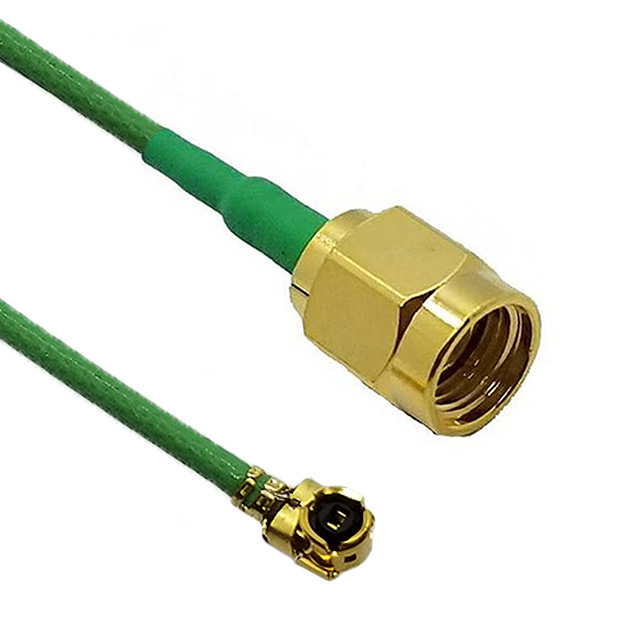

Cable Assembly Coaxial I-PEX MHF1 to RP-SMA 1.32mm OD Coaxial Cable DS 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.32D-IPX-SARMGT-12IN |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC), I-PEX MHF1 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 1.32 mm |
| Cable Type | Coaxial Cable DS, OD Coaxial Cable DS |
| Cable Type Size | 1.32, 1.32 mm |
| Color | Green |
| Features | Double Shielded |
| Frequency - Max | 6000 MHz |
| Length | 12 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 to RP-SMA |
