RFC20-472K-RC
ActiveAllied Components International
4700UH10% RFC20 RADIAL FLT COIL
RFC20-472K-RC
ActiveAllied Components International
4700UH10% RFC20 RADIAL FLT COIL
Description
General part information
RFC20-472K-RC

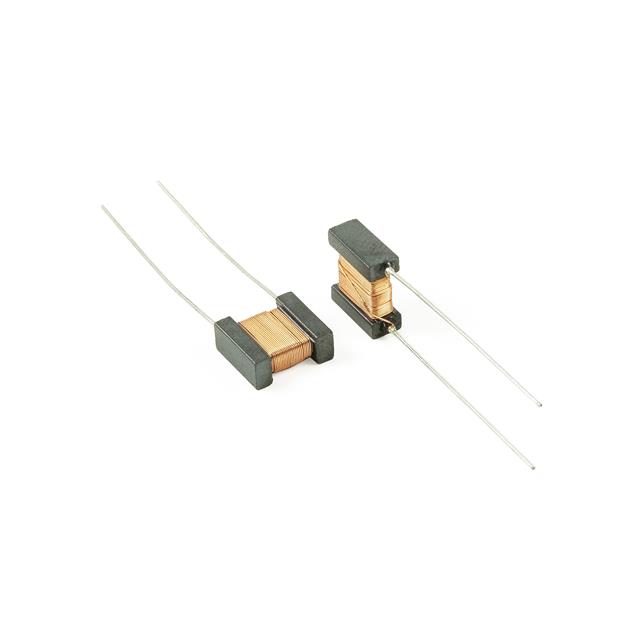

4.7 mH Unshielded Wirewound Inductor 110 mA 28.9Ohm Max Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | RFC20-472K-RC |
|---|---|
| Current Rating | 110 mA |
| DC Resistance (DCR) (Max) | 28.9 Ohm |
| Height - Seated (Max) | 0.4 in |
| Inductance | 4.7 mH |
| Inductance Frequency - Test | 250 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Radial |
| Package Name | Radial |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.4 in |
| Size / Dimension Width | 0.15 in |
| Tolerance | 10 % |
| Type | Wirewound |
