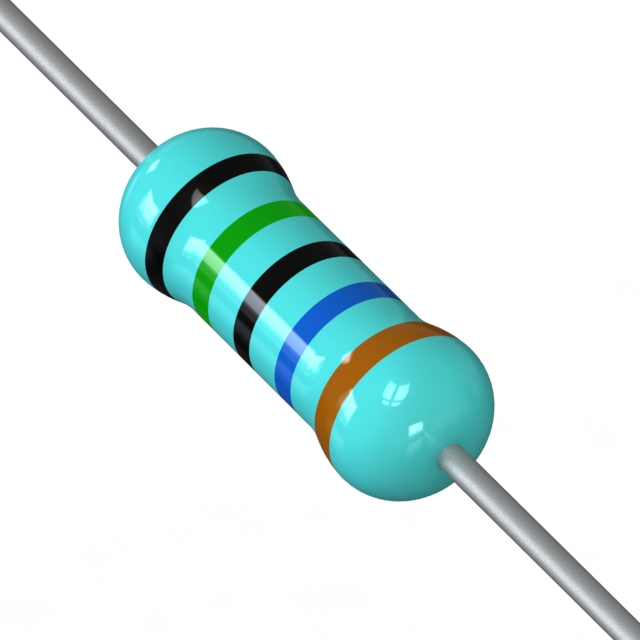

HVA12FA50M0
ActiveStackpole Electronics Inc
RES METAL FILM 50M OHM 1% 1.2W ±200PPM/°C AXL AMMO
HVA12FA50M0
ActiveStackpole Electronics Inc
RES METAL FILM 50M OHM 1% 1.2W ±200PPM/°C AXL AMMO
Description
General part information
HVA12FA50M0
50 MOhms ±1% 1.2W Through Hole Resistor Axial High Voltage Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVA12FA50M0 |
|---|---|
| Composition | Metal Film |
| Features | High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1.2 W |
| Resistance | 50 MOhm |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.433 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
