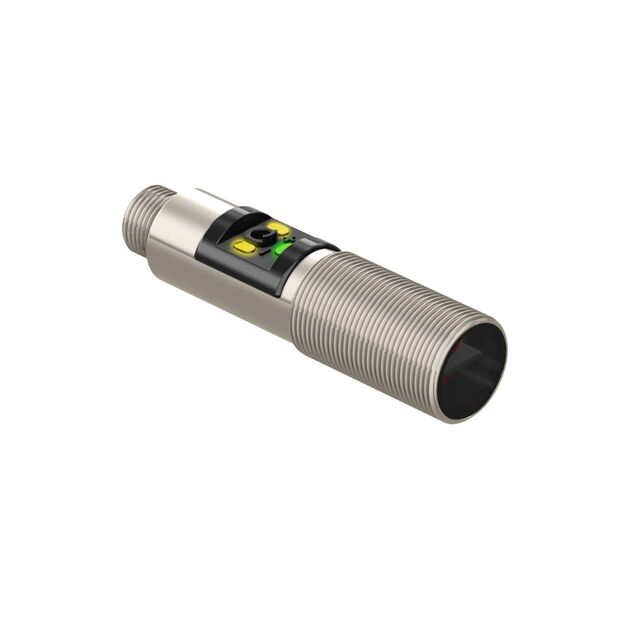

M18-4VPLV-Q8
ActivePHOTOELECTRIC SENSORS M18-4 SERIES: STAINLESS: NON-POLARIZED RETROREFLECTIVE WITH POT; RANGE: VARIABLE TO 7.5 M; INPUT: 10-30 V DC; OUTPUTS: COMPLEMENTARY PNP; 4-PIN M12 INTEGRAL QD
M18-4VPLV-Q8
ActivePHOTOELECTRIC SENSORS M18-4 SERIES: STAINLESS: NON-POLARIZED RETROREFLECTIVE WITH POT; RANGE: VARIABLE TO 7.5 M; INPUT: 10-30 V DC; OUTPUTS: COMPLEMENTARY PNP; 4-PIN M12 INTEGRAL QD
Description
General part information
M18-4VPLV-Q8
Retroreflective Optical Sensor 24.61' (7.5m) PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | M18-4VPLV-Q8 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | Connector |
| Ingress Protection | IEC 60529, IP67, IP68, IP69K |
| Light Source | Red LED |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | PNP |
| Response Time | 1.5 ms, 1 ms |
| Sensing Distance | 24.61 ' |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
