Description
General part information
3205117

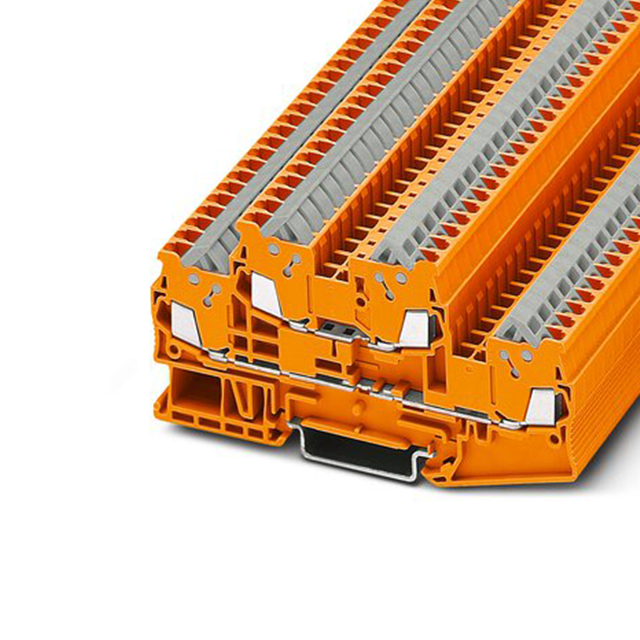

Terminal Block Connector 4 Position Feed Through Orange 16-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3205117 |
|---|---|
| Color | Orange |
| Current - IEC | 17.5 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Terminal Width | 5.2 mm |
| Termination Style | IDC |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 16 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.25 mm² |
