Description
General part information

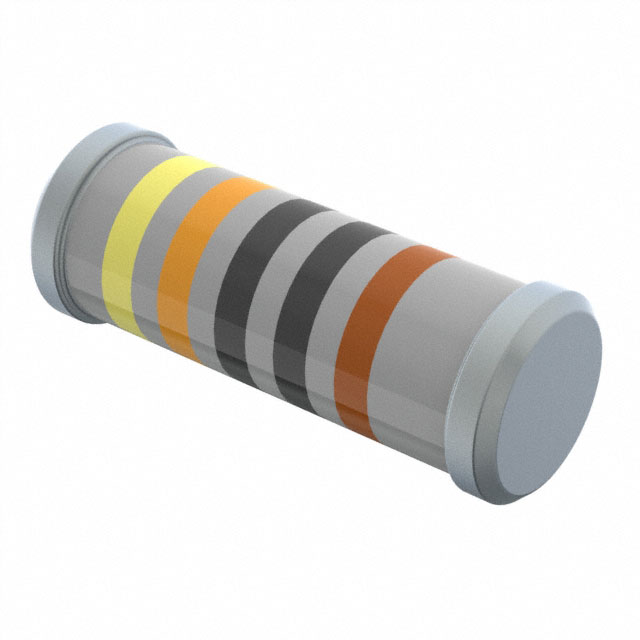

MMP100FRE430R
430 Ohms ±1% 1W Chip Resistor MELF, 0207 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MMP100FRE430R |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | MELF |
| Power (Watts) | 1 W |
| Resistance | 430 Ohm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.232 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
