APT13003DU-E1
ObsoleteDiodes Inc
TRANS NPN DARL 450V 1.5A TO126
APT13003DU-E1
ObsoleteDiodes Inc
TRANS NPN DARL 450V 1.5A TO126
Description
General part information
APT13003DU-E1
Bipolar (BJT) Transistor NPN - Darlington 450 V 1.5 A 4MHz 1.1 W Through Hole TO-126
Technical Specifications
Parameters and characteristics for this part
| Specification | APT13003DU-E1 |
|---|---|
| Current - Collector (Ic) (Max) | 1.5 A |
| Current - Collector Cutoff (Max) | 10 µA |
| DC Current Gain (hFE) (Min) | 16 |
| Frequency - Transition | 4 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |

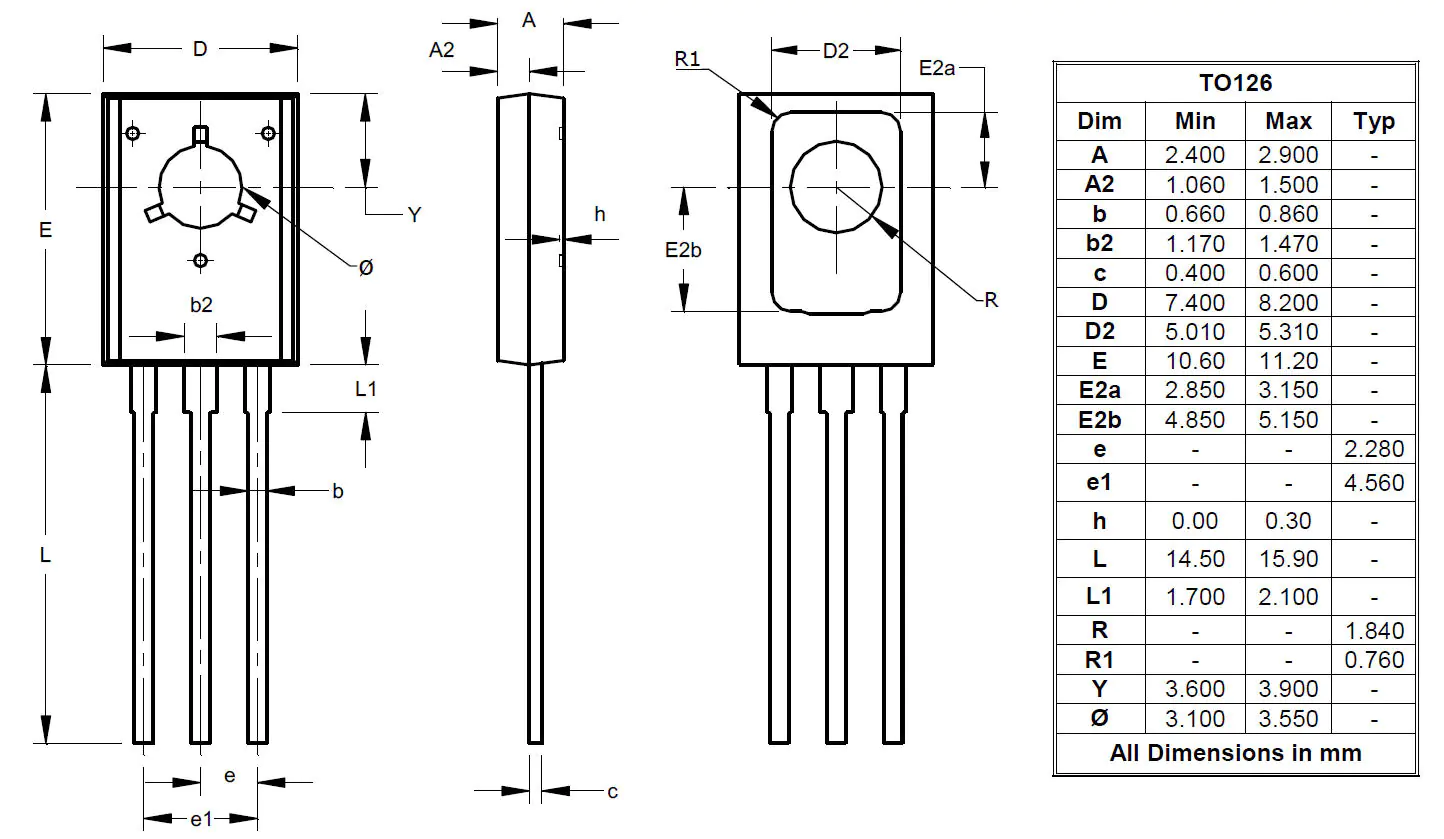

| Package / Case | TO-225AA, TO-126-3 |
| Package Name | TO-126 |
| Power - Max | 1.1 W |
| Transistor Type | NPN, Darlington |
| Vce Saturation (Max) | 400 mV |
| Voltage - Collector Emitter Breakdown (Max) | 450 V |
