1808 BK001

Active

ALPHA WIRE

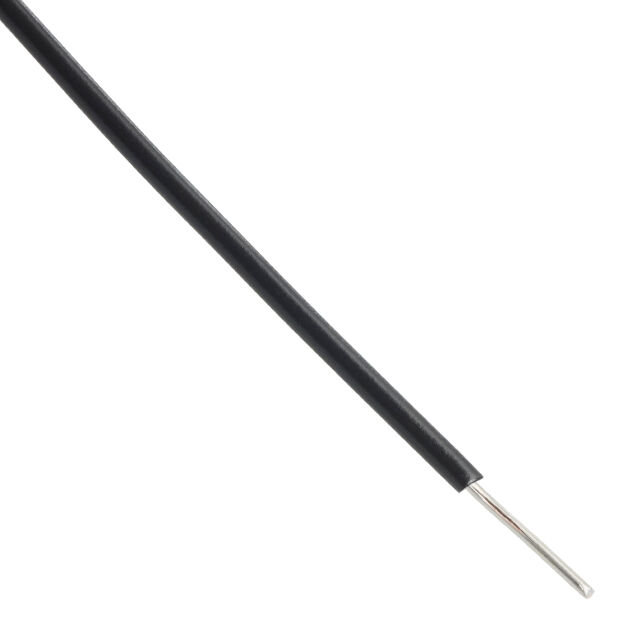

HOOK-UP SOLID 24AWG BLACK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

HOOK-UP SOLID 24AWG BLACK 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1808 BK001	1808 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Conductor Strand	Solid	Solid
Jacket (Insulation) Diameter [diameter]	0.03 in	0.03 in
Jacket (Insulation) Diameter [diameter]	0.76 mm	0.76 mm
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.005 in	0.005 in
Jacket (Insulation) Thickness	0.13 mm	0.13 mm
Jacket Color	Black	Green, Red, Black, Yellow, Violet
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-70 °C	-70 °C
Ratings	UL Style 1516	UL Style 1516
Wire Gauge	24 AWG	24 AWG

HOOK-UP SOLID 24AWG GREEN 100'

Part	Conductor Material	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Ratings	Conductor Strand	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE 1808 GR005	Copper, Silver Coated	Green	150 °C	-70 °C	Ethylene Tetrafluoroethylene (ETFE)	UL Style 1516	Solid	30.5 m	100 ft	0.005 in	0.13 mm	Hook-Up	24 AWG	0.03 in	0.76 mm
ALPHA WIRE 1808 RD001	Copper, Silver Coated	Red	150 °C	-70 °C	Ethylene Tetrafluoroethylene (ETFE)	UL Style 1516	Solid			0.005 in	0.13 mm	Hook-Up	24 AWG	0.03 in	0.76 mm	1000 ft	304.8 m
ALPHA WIRE 1808 BK001	Copper, Silver Coated	Black	150 °C	-70 °C	Ethylene Tetrafluoroethylene (ETFE)	UL Style 1516	Solid			0.005 in	0.13 mm	Hook-Up	24 AWG	0.03 in	0.76 mm	1000 ft	304.8 m
ALPHA WIRE 1808 YL001	Copper, Silver Coated	Yellow	150 °C	-70 °C	Ethylene Tetrafluoroethylene (ETFE)	UL Style 1516	Solid			0.005 in	0.13 mm	Hook-Up	24 AWG	0.03 in	0.76 mm	1000 ft	304.8 m
ALPHA WIRE 1808 VI001	Copper, Silver Coated	Violet	150 °C	-70 °C	Ethylene Tetrafluoroethylene (ETFE)	UL Style 1516	Solid			0.005 in	0.13 mm	Hook-Up	24 AWG	0.03 in	0.76 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 AWG Hook-Up Wire Solid Black 1000.0' (304.8m)
