Description
General part information

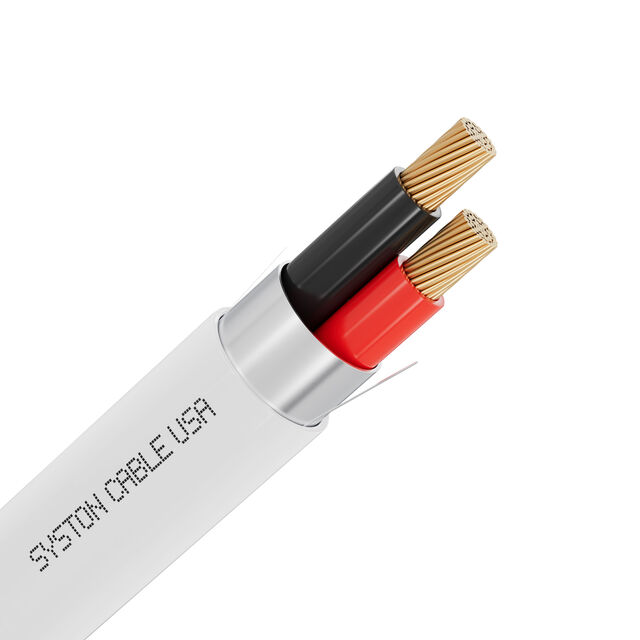

DK-5618-SB-WH-50
2 Conductor Multi-Conductor Cable White 18 AWG Foil 50.00' (15.24m)
Technical Specifications
Parameters and characteristics for this part
| Specification | DK-5618-SB-WH-50 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, UV Resistant, Low Smoke, Low Voltage |
| Jacket (Insulation) Diameter | 0.189 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Plenum |
| Jacket Color | White |
| Length | 50 ft |
| Number of Conductors | 2 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Ratings | 444, 725, ASTM, NEC, B8, UL, B-3, NFPA, 262, 13, CSA-C22.2, 800, Style, CMP |
| Shield Coverage | 99 % |
| Shield Material | Aluminum, Polyester |
| Shield Type | Foil |
| Usage | Security, Access Control, Communication, Alarm, Instrumentation, Sound |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
